26 × 23 mm objective lens | 3 MOA dot | Side-load CR1632 battery
7075 aluminum housing, 8 daytime + 2 NV settings and 20,000-hour battery life at low illumination. Contact HERTDOT for product configuration and bulk order inquiries.
Switchable dot, circle and circle-dot reticles (3 MOA dot).
Add a distinct base-mounted option to your red dot sight lineup. The HERTDOT HD2623A04F combines a 26 × 23 mm objective lens with a rounded lens housing, paired side controls and a raised base with visible clamp hardware. It gives your buyers a clear configuration to review before they discuss mounting and order requirements. Tell us your target quantity and destination market, and we will help you prepare a product quotation.
The CR1632 battery loads from the side, keeping battery access separate from the underside mounting interface. The specified battery life is 20,000 hours at a low illumination level, and a low-battery alarm provides a reminder when power is running low.
With 8 daytime settings and 2 night-vision settings, you can select the illumination level for the conditions. Need a different setting arrangement for your product range? Customized illumination settings can be discussed with HERTDOT.
A 7075 aluminum housing and hard-coat anodized surface give HD2623A04F a practical material and finish specification for your catalog. The matte black color keeps the product presentation consistent across your optics assortment.

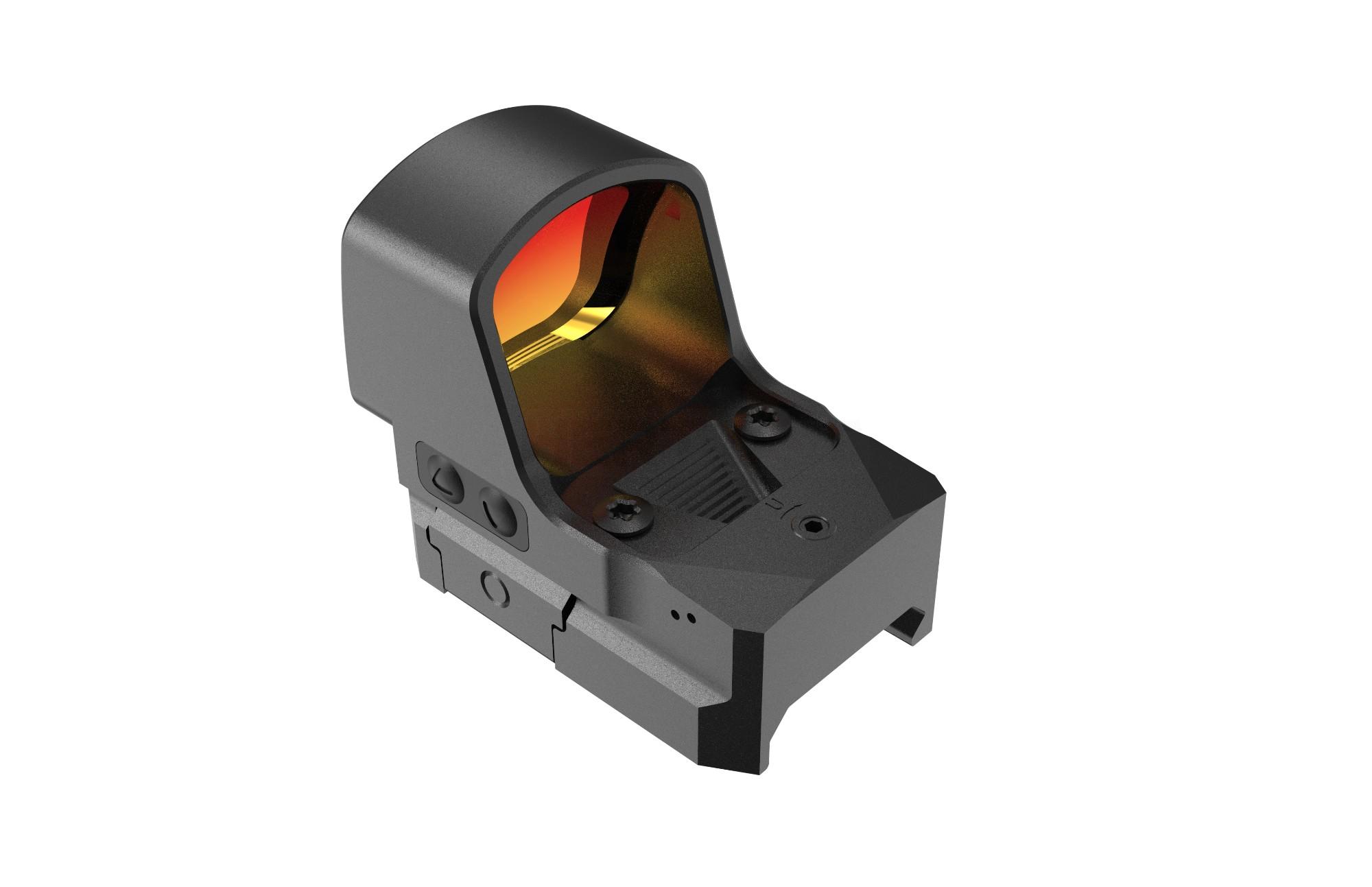

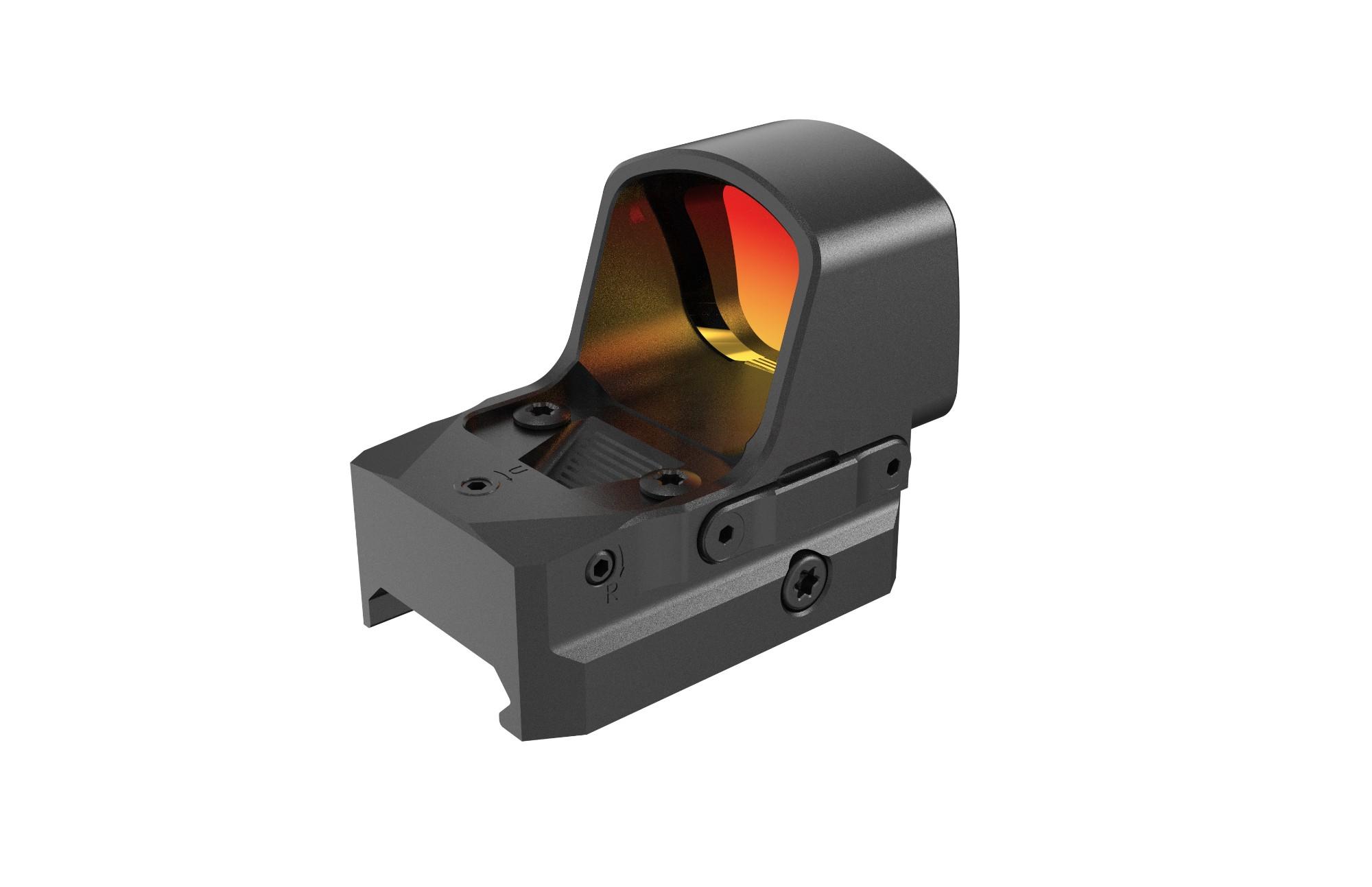

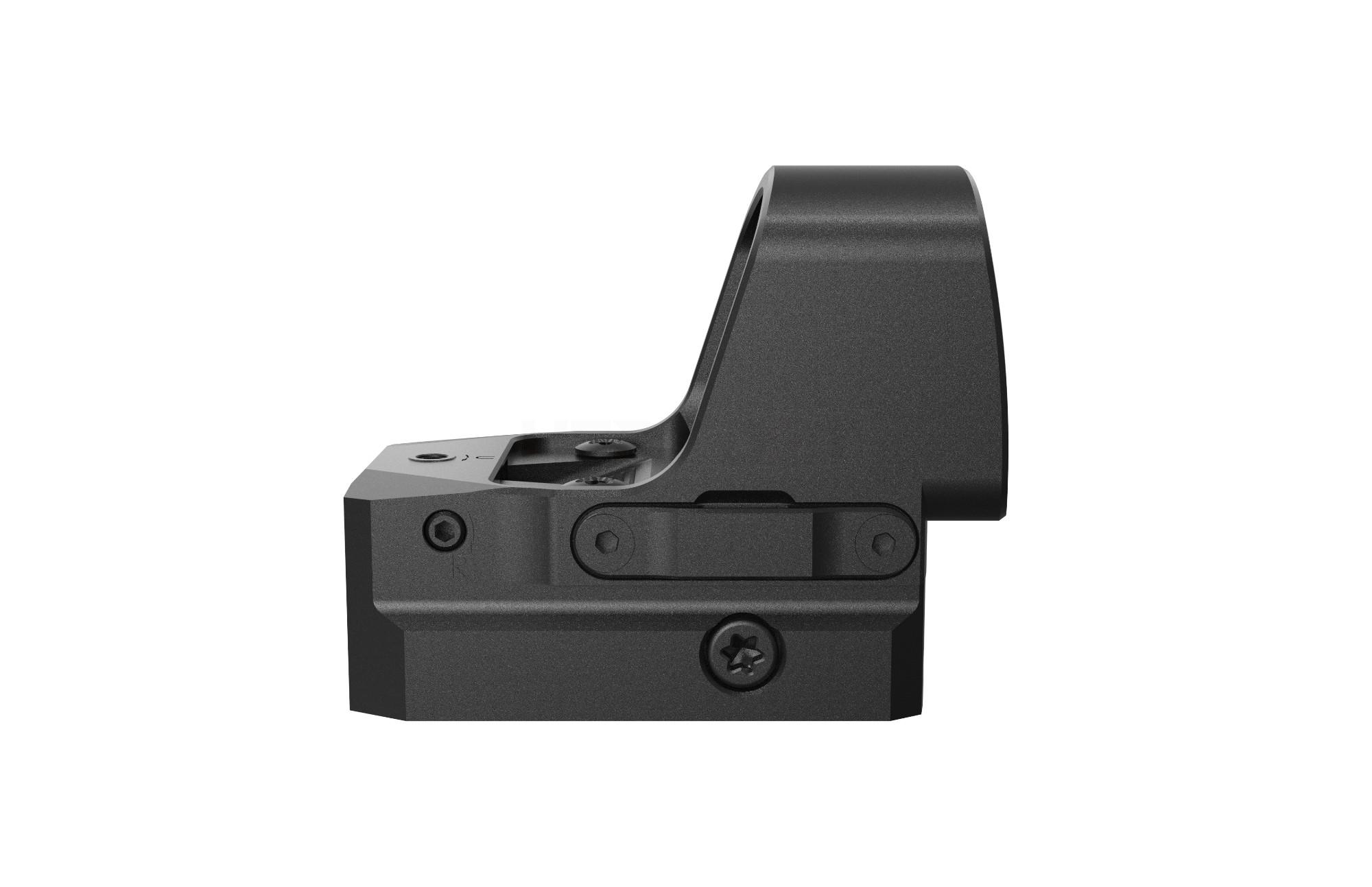

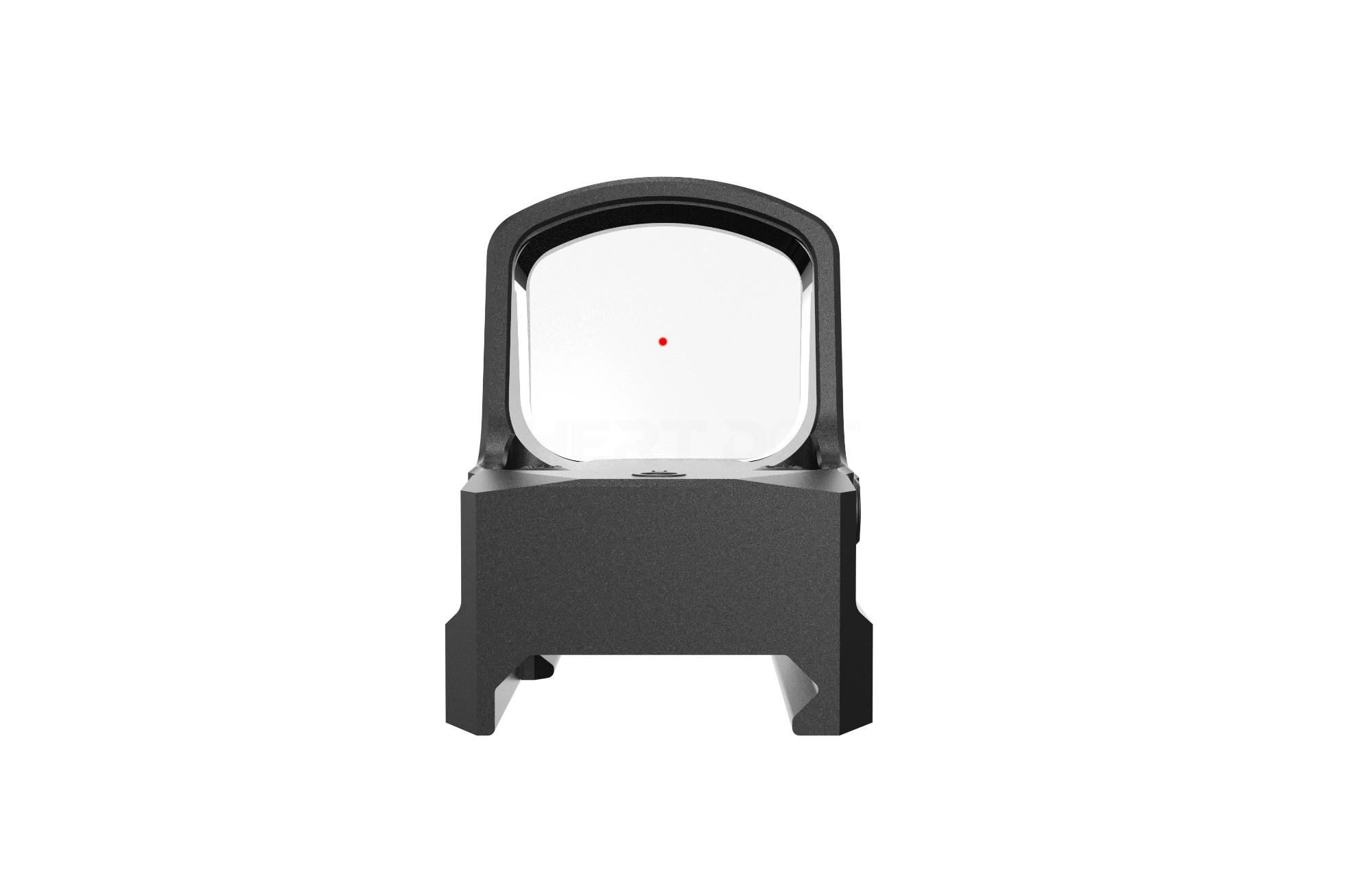

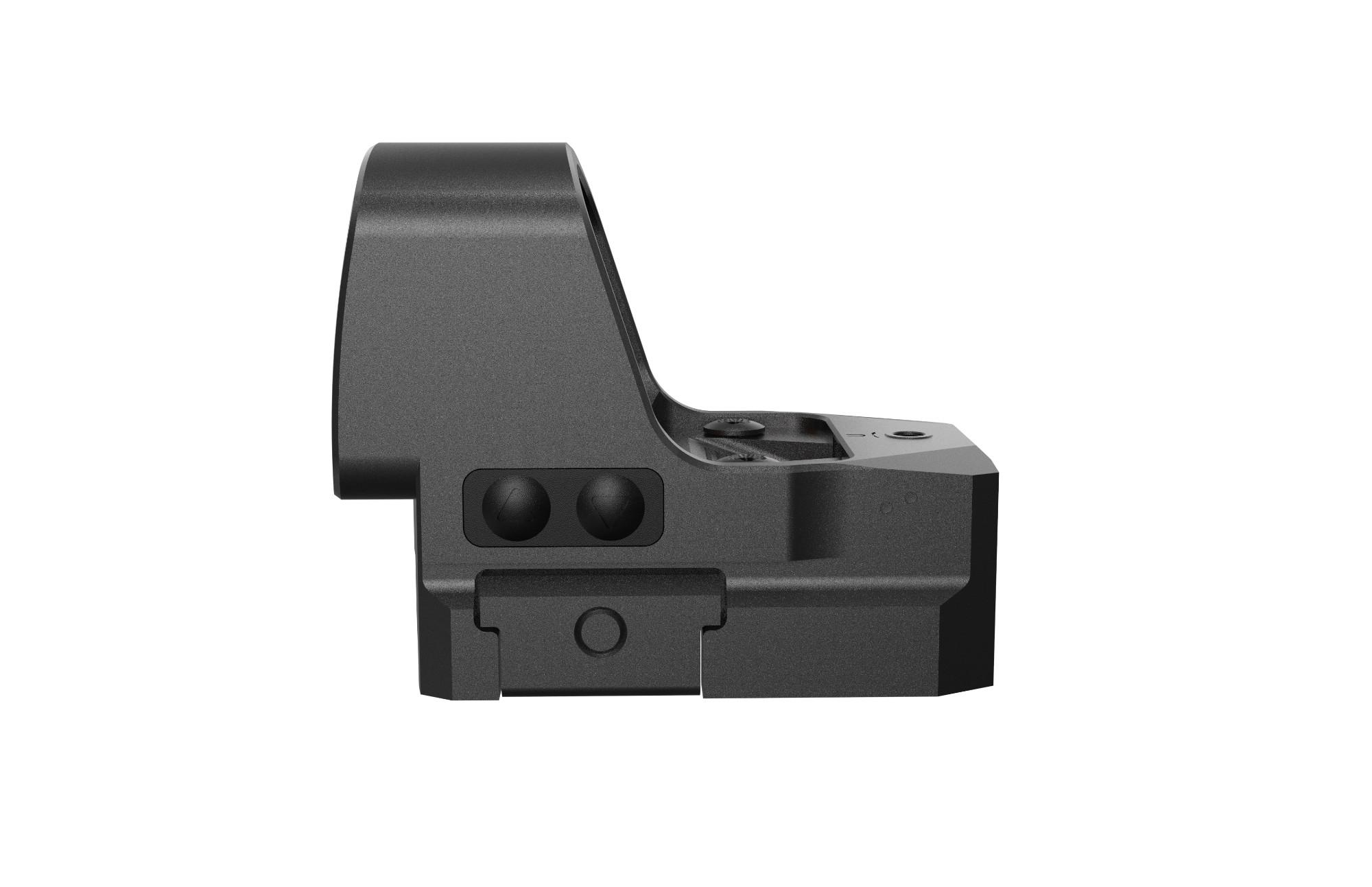

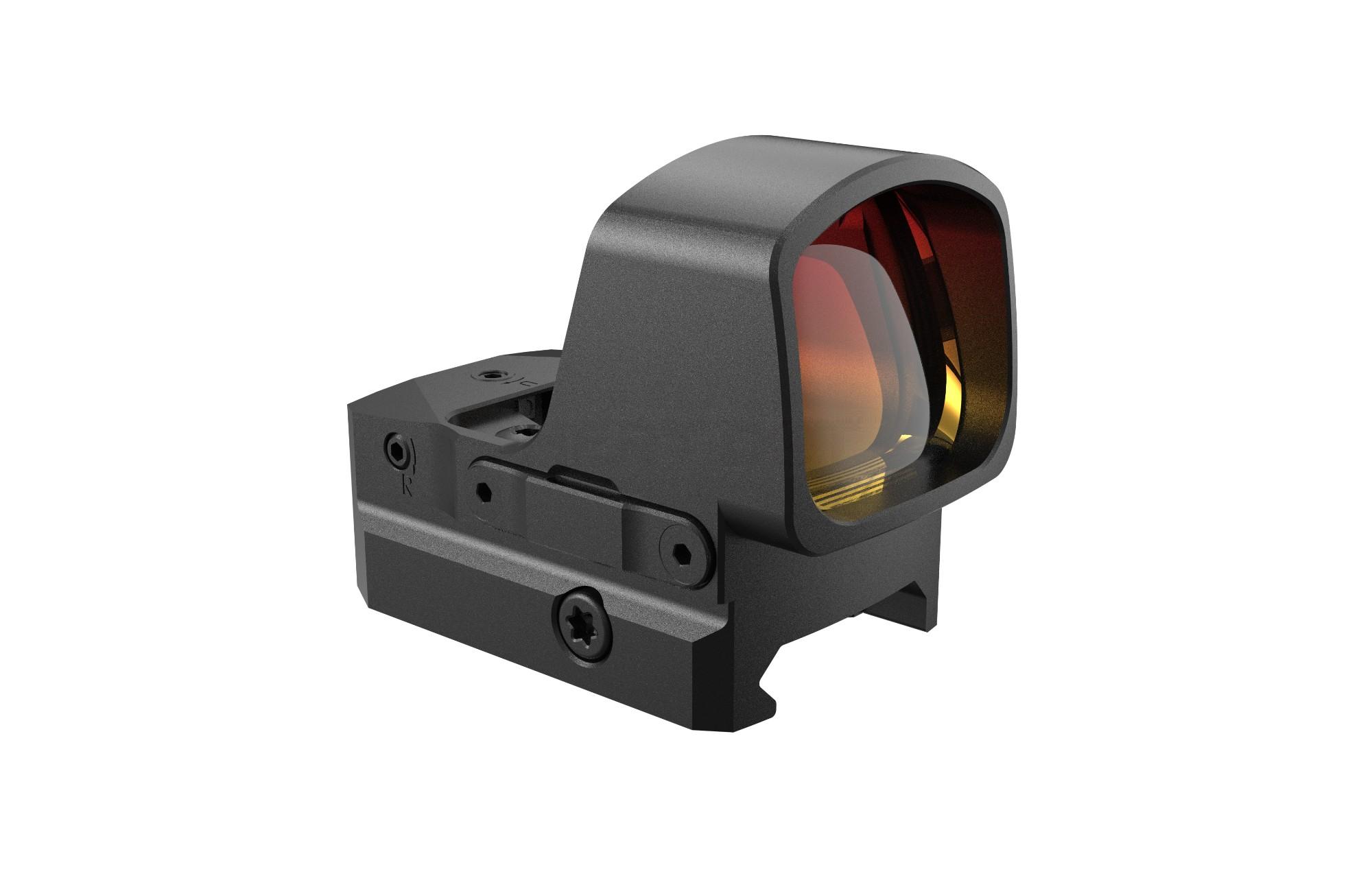

The gallery shows a rounded upper housing above a raised base, with visible side clamp hardware and two adjacent side buttons. Review the front, rear and side views to assess the layout, then confirm the mounting standard and installation height for your intended configuration.
The specified water-resistance condition is 1 meter for 30 minutes, with a 3000 G shock-resistance rating. Operating temperature is −20°C to +40°C. These values give your purchasing team concrete requirements to compare when reviewing the product.
Switch between dot, circle and circle-dot reticle patterns to choose your preferred sight picture. The dot is 3 MOA.
| Reticle Options |  |
|---|---|
| Model | HD2623A04F |
| Product type | Red Dot Sight |
| Objective Lens Dimensions | 26 × 23 mm |
| Dot size | 3 MOA |
| Mounting interface / footprint | |
| Total Elevation Range | 60 MOA (30 MOA each side) |
| Total Windage Range | 60 MOA (30 MOA each side) |
| Battery | CR1632 — side load |
| Battery Life | 20,000 hours at low illumination level |
| Illumination Settings | 8 daytime + 2 night-vision settings; customizable |
| Low Battery Alarm | Yes |
| Housing Material | 7075 aluminum |
| Housing Surface | Hard-coat anodized |
| Housing Color | Matte black |
| Size (L × W × H) | |
| Weight | |
| Waterproof | 1 m for 30 minutes |
| Shockproof | 3000 G |
| Operating Temperature | −20°C to +40°C (−4°F to +104°F) |
| Storage Temperature | −30°C to +50°C (−22°F to +122°F) |
| Auto-off / motion activation |
Bring HD2623A04F into your product selection with a 26 × 23 mm objective lens, 3 MOA dot and side-load CR1632 battery. Share your target quantity, required mounting setup, destination market and illumination preferences so we can address the details that matter to your purchasing team.
Planning a sample evaluation or a branded product offering? Include your sample, logo, packaging and documentation requirements in your inquiry. We will confirm available options, minimum order quantity, lead time and commercial terms for your request.
| Mounting interface / footprint | |
|---|---|
| Mount / adapter included | |
| Included accessories |
| Minimum order quantity | |
|---|---|
| Production lead time | |
| Branding / packaging options |
Send us your quantity, mounting requirements and destination market. HERTDOT will help you confirm the product configuration and prepare a quotation for your next order.
Request a Product Quotation
