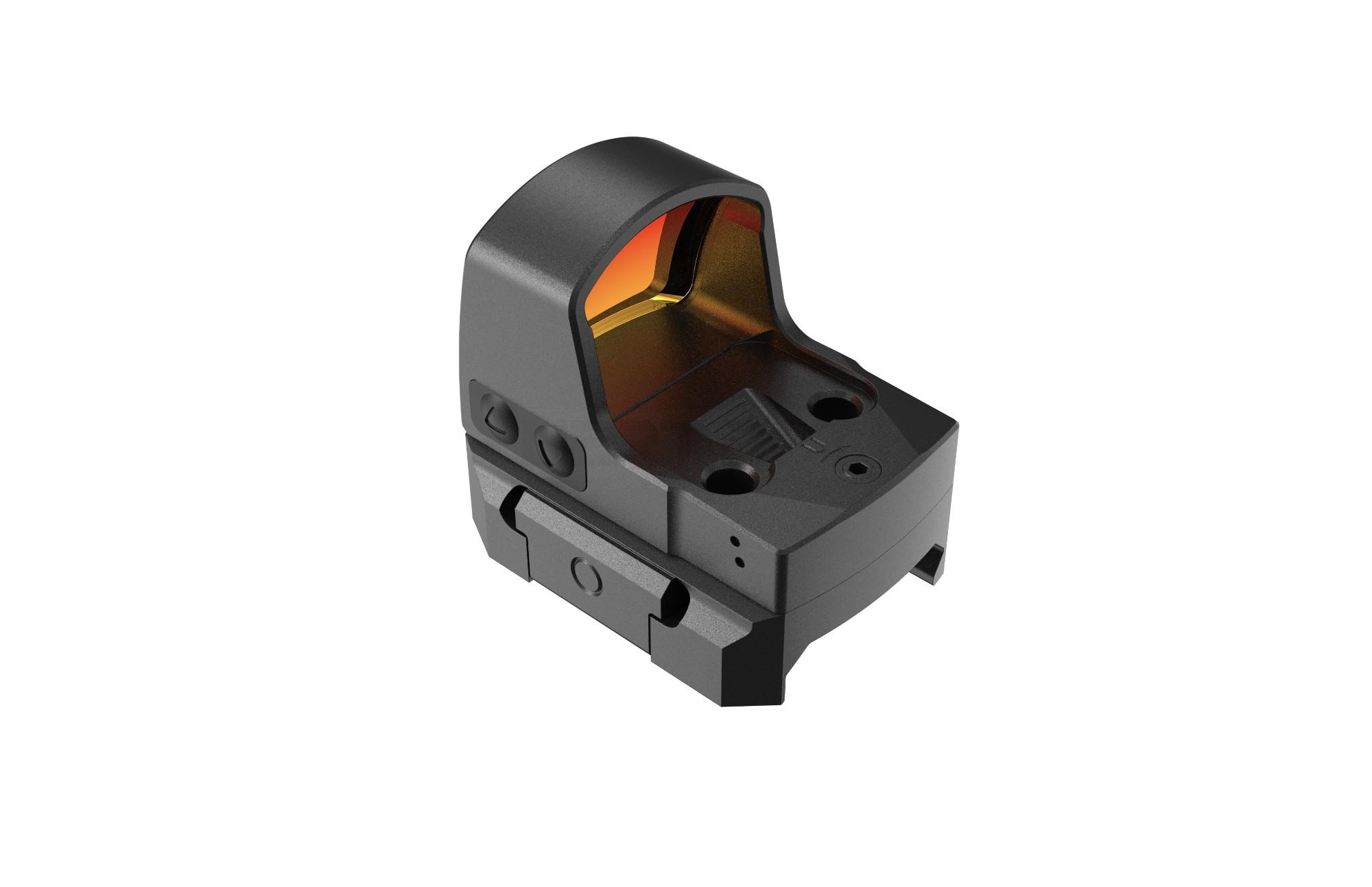

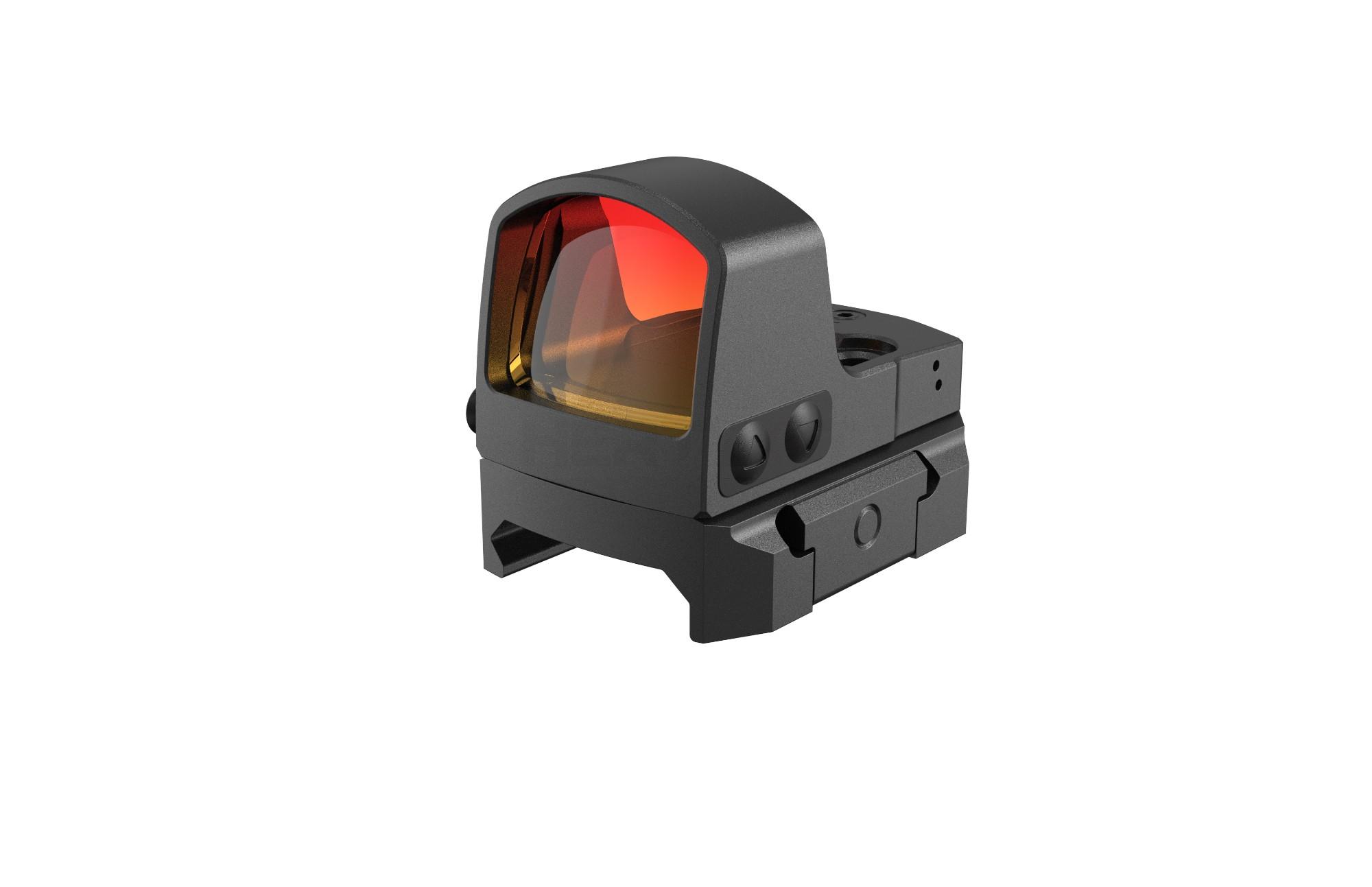

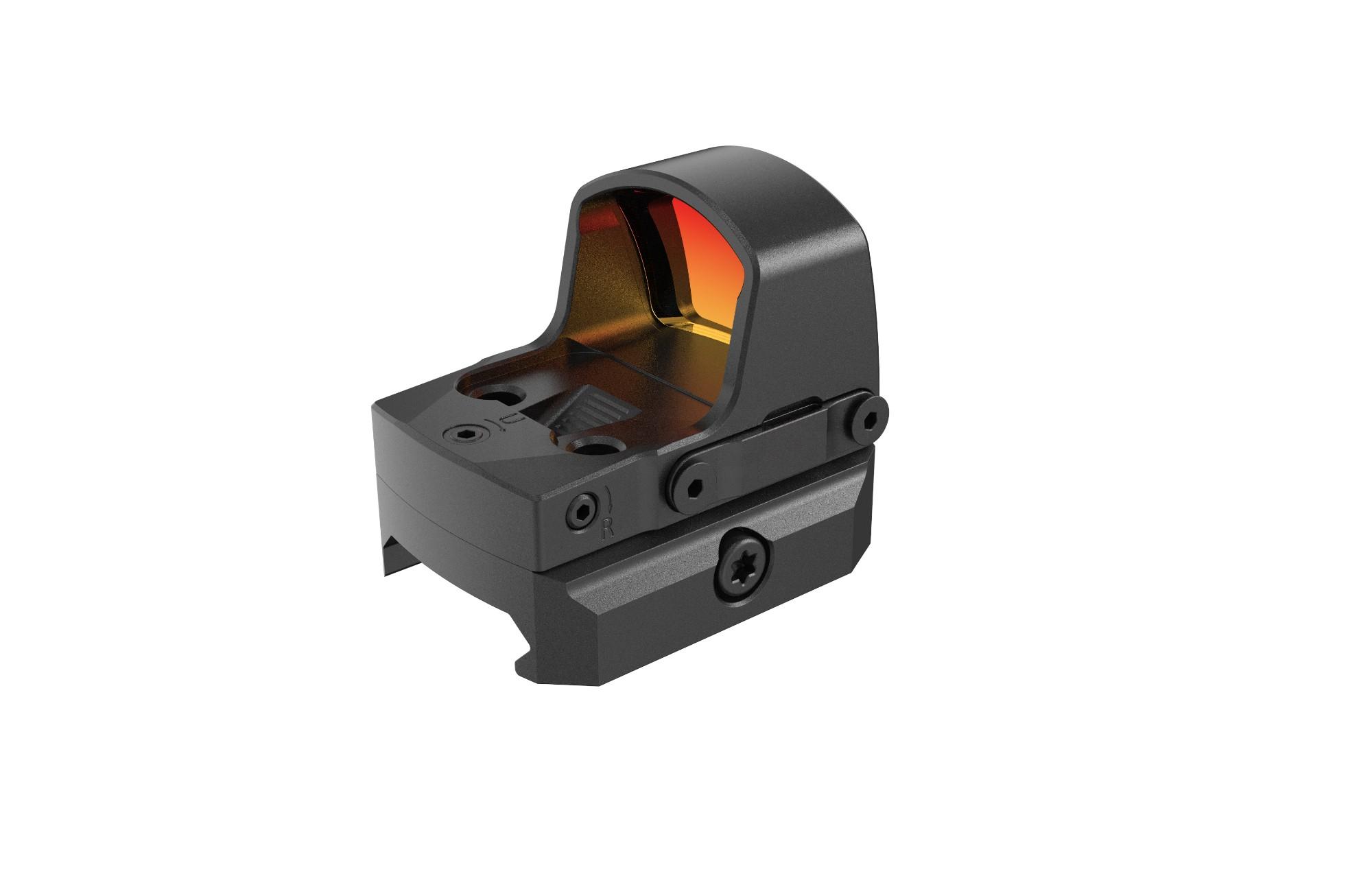

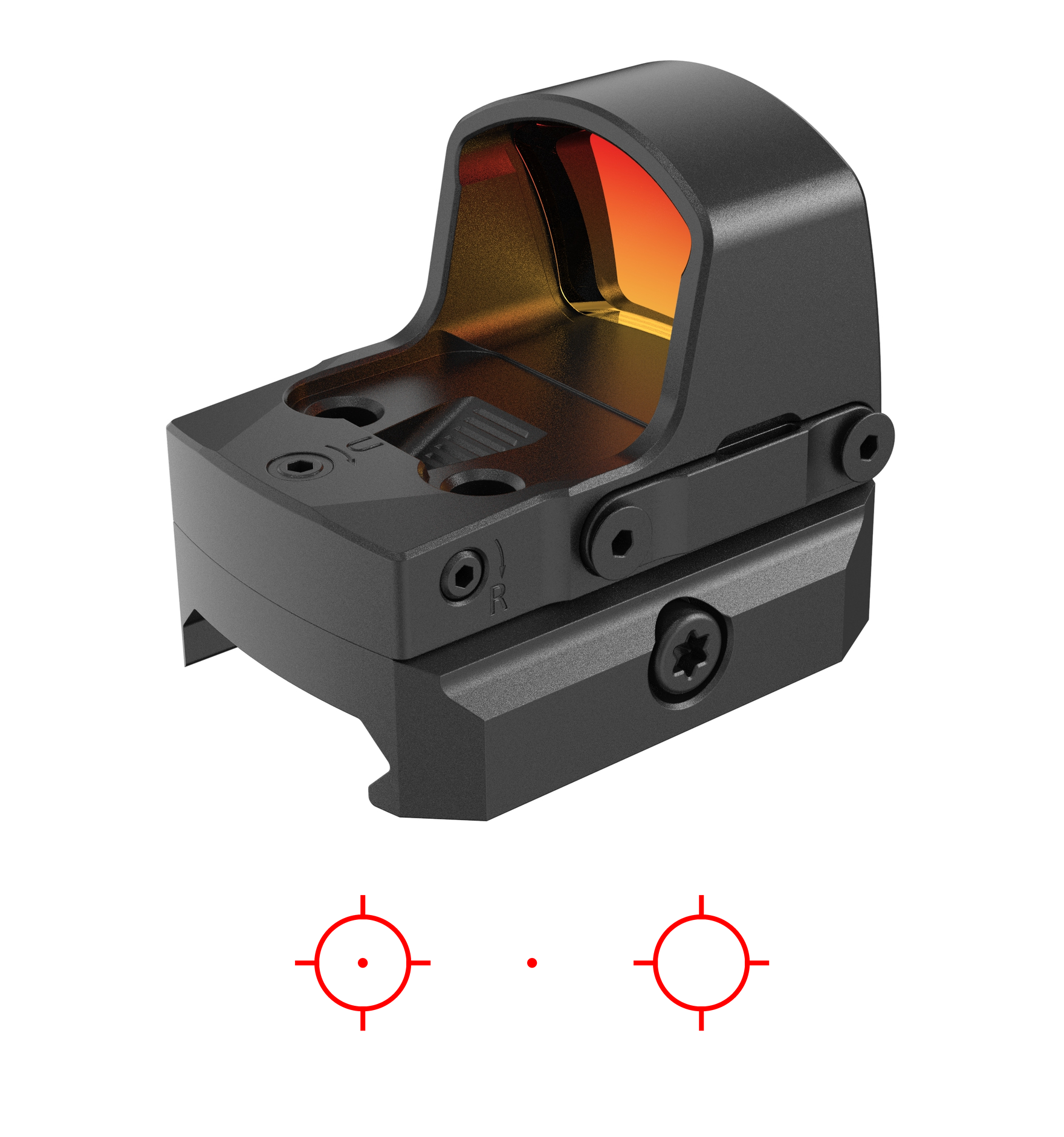

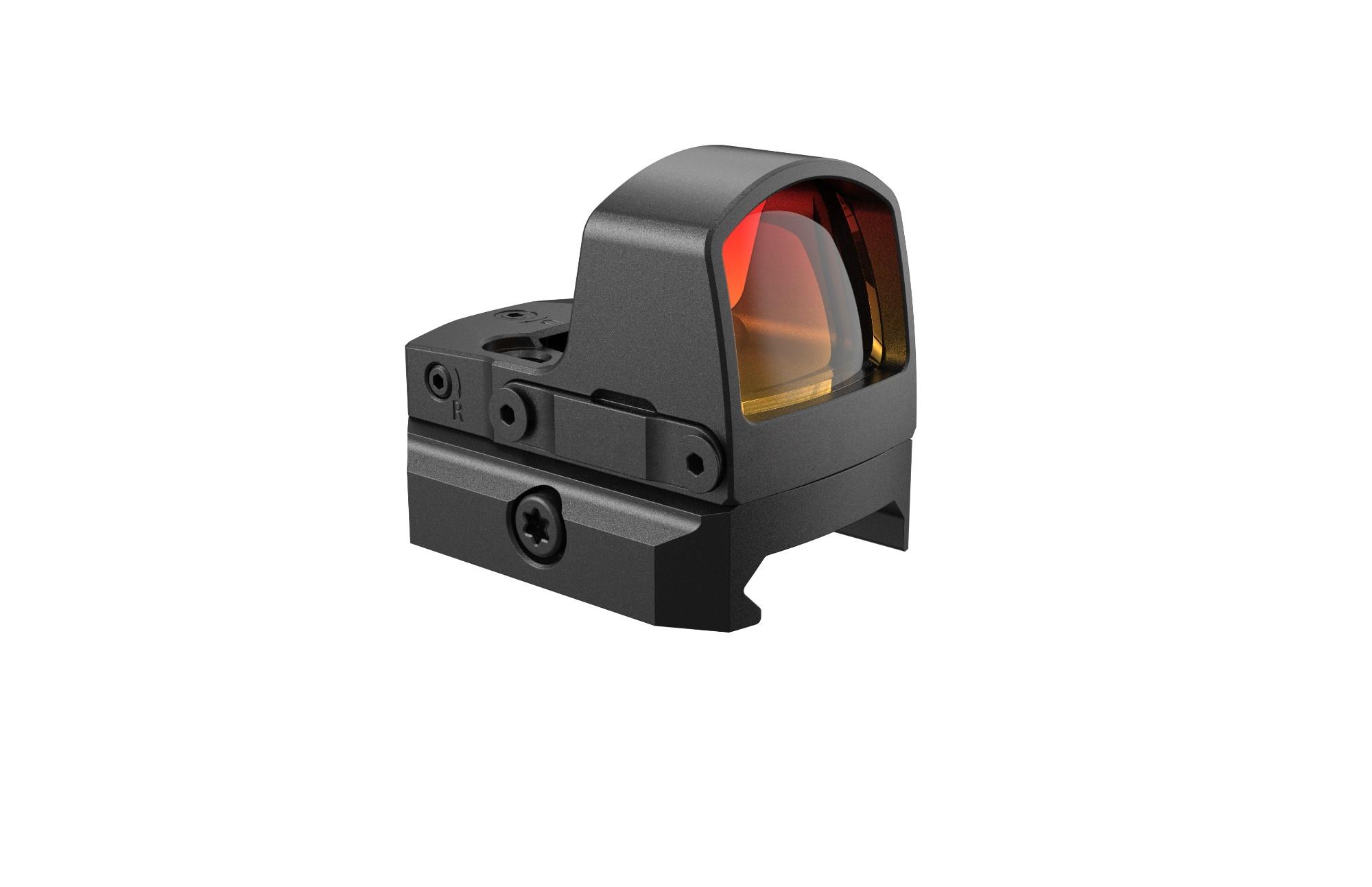

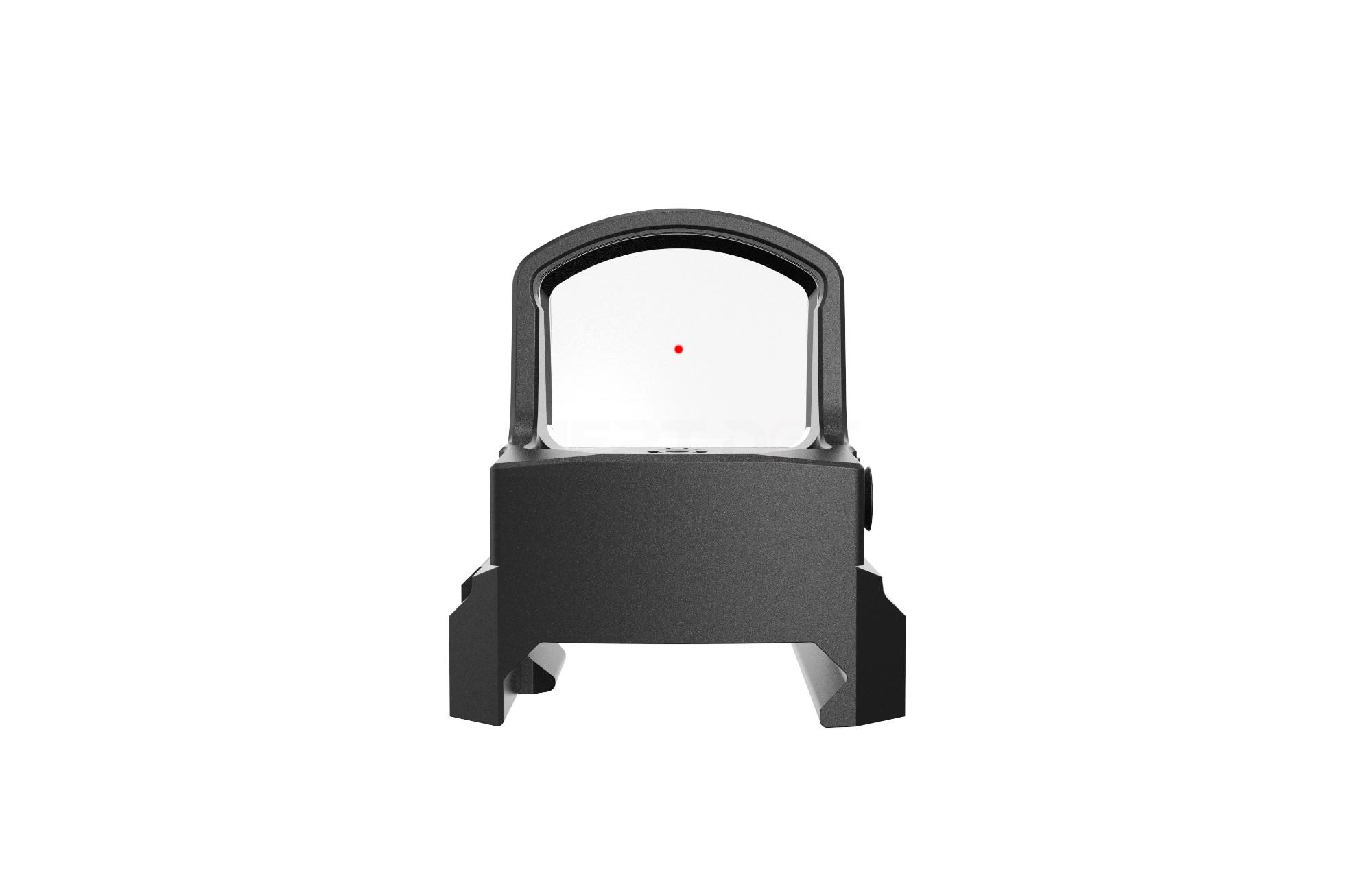

The HERTDOT HD2217A04F is a 22 × 17 mm red dot sight with open reflex housing with a rounded protective hood. The supplied product views show a red-dot aiming point, side brightness controls and raised mounting base shown in the supplied product images. Send your target platform, quantity and customization brief for a model-specific quotation.
The HERTDOT HD2217A04F is a compact open reflex red dot sight with a raised mounting configuration. Its supplied views show a red-dot aiming point, side brightness controls and a black protective housing built around a 22 × 17 mm window format.
The model format gives procurement teams a clear window-size reference when comparing compact red-dot platforms.
The compact open-emitter format and raised base create a clear sourcing option for buyers balancing window size and overall footprint.

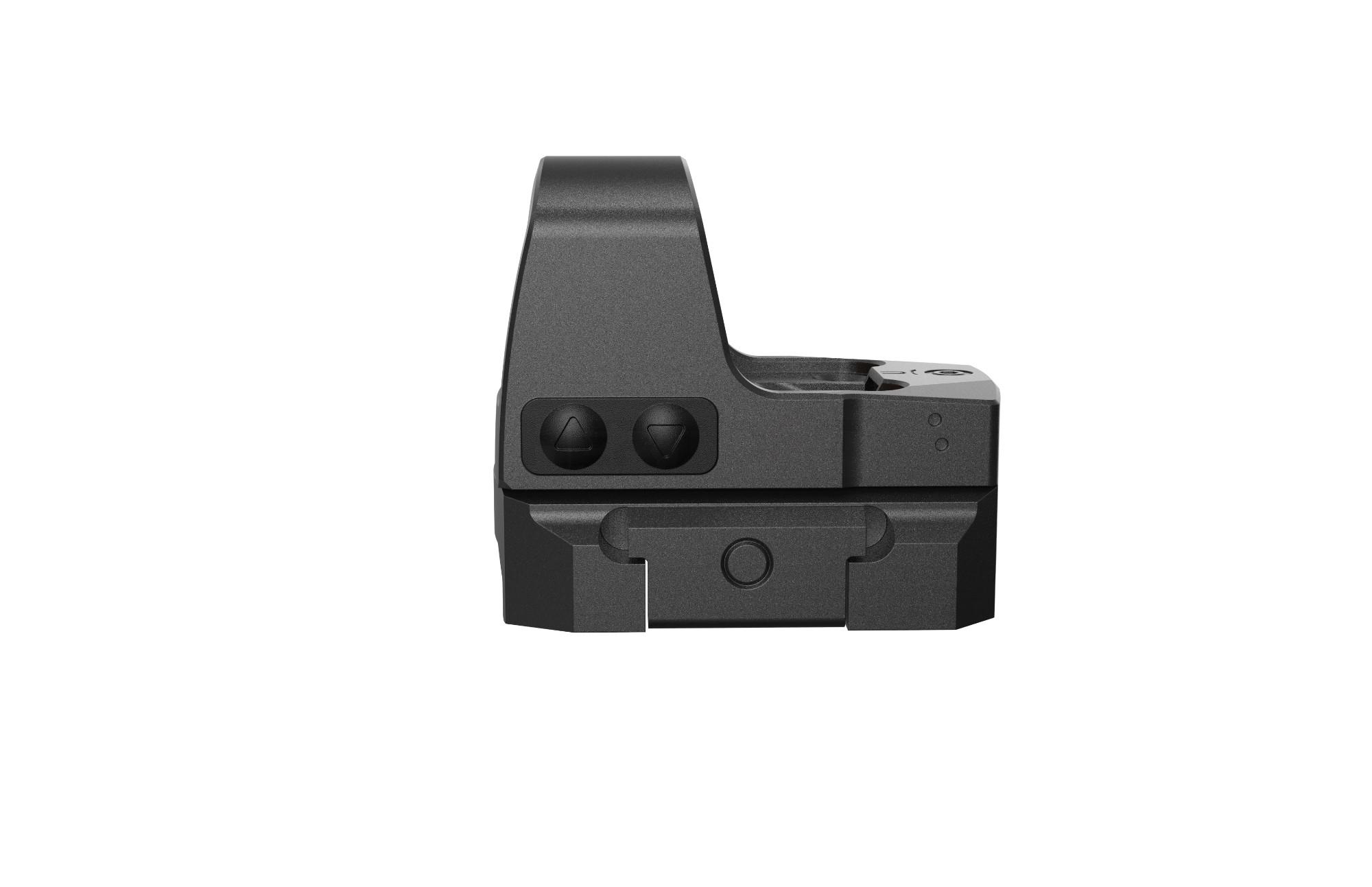

Clearly marked side controls provide direct access to illumination adjustment and remain visible in the supplied gallery.

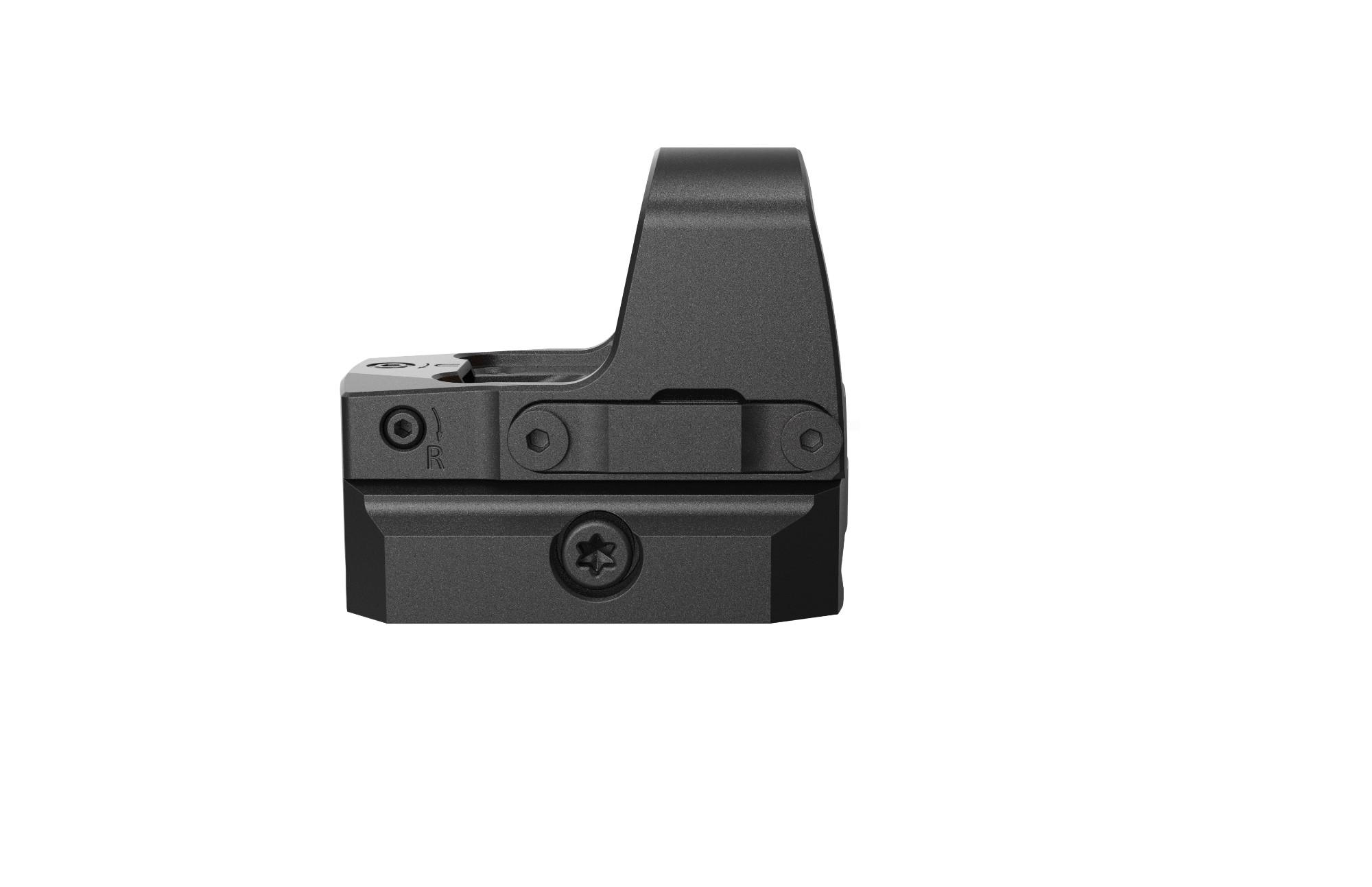

Raised mounting base shown in the supplied product images Confirm the required interface and host-platform dimensions with the quotation request.

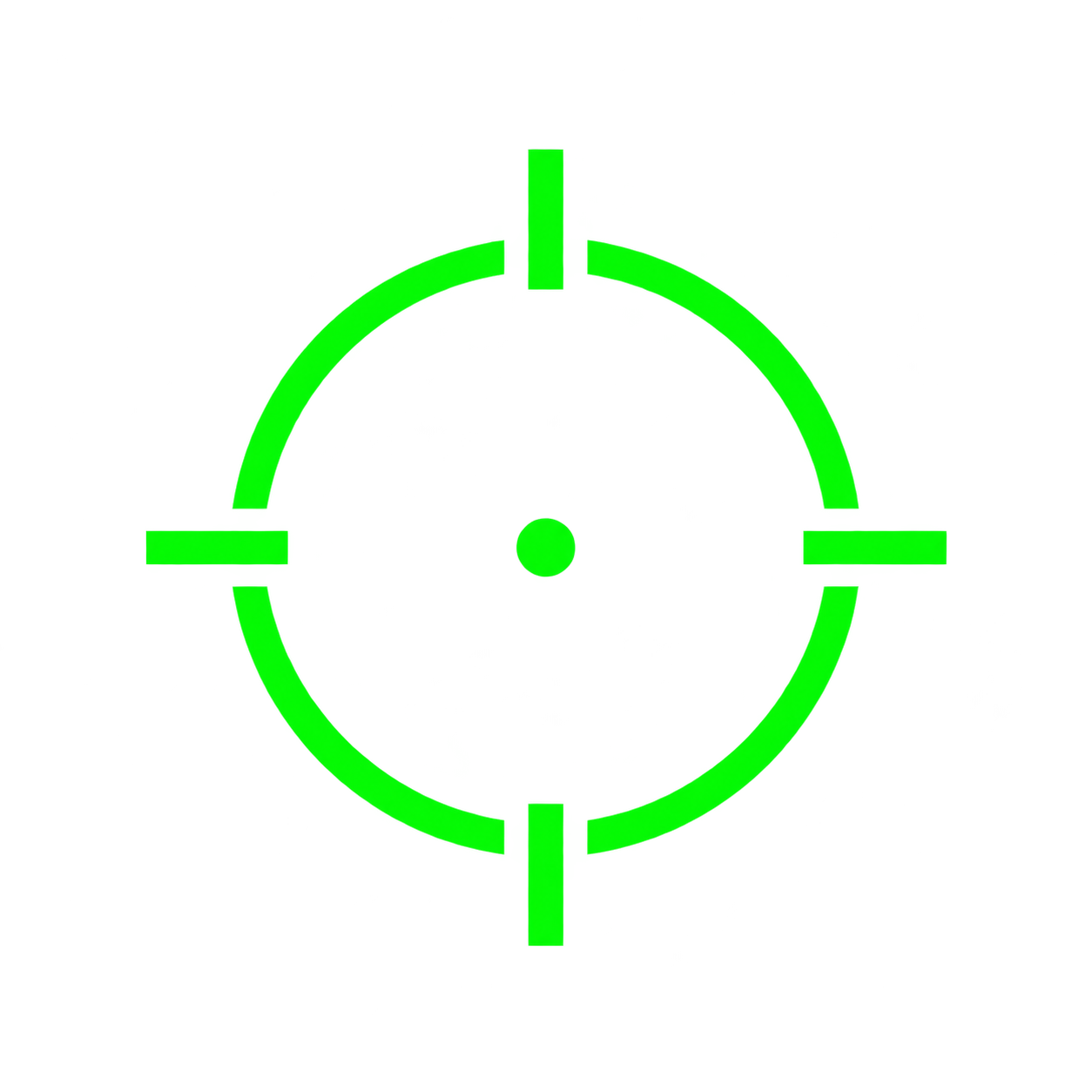

| Reticle Options |    |
|---|---|
| Model | HD2217A04F |
| Product type | Red/Green Dot Sight |
| Objective Lens Dimensions | 22 × 17 mm |

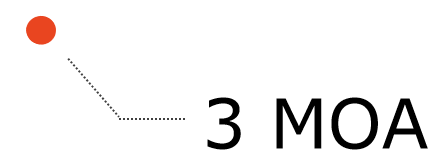

| Dot size | 3 MOA † |
| Total Elevation Range | 90 MOA (45 MOA each side) † |
| Total Windage Range | 90 MOA (45 MOA each side) † |
| Illumination Settings | 8 daytime + 2 night-vision settings † |
| Low Battery Alarm | Yes † |
| Housing Material | CNC-machined 6061 aluminum † |
| Housing Surface | Anodized † |
| Housing Color | Matte black † |
| Operating Temperature | −20°C to +40°C (−4°F to +104°F) † |
| Storage Temperature | −30°C to +50°C (−22°F to +122°F) † |
| Auto-off / motion activation | Automatic power-off after 2 minutes without motion; powers on when motion is detected † |
| Housing style | Open reflex housing with a rounded protective hood |
| Mounting configuration | Raised mounting base shown in the supplied product images |
| Reticle color | Red or green † |
| Illumination source | High-efficiency point-source LED emitter † |
| Eye relief | Unlimited † |
| Parallax | ≤2 MOA † |
| Lens material / treatment | Multi-coated glass † |
† Provisional series-based specification inferred from HS2420ACF / HD2217EQF. Confirm the final configuration before order approval. Dimensions, weight, battery, environmental ratings and footprint are not inferred.
Use HD2217A04F in a sourcing brief when the 22 × 17 mm format and its visible housing configuration match the intended product line. Include the target market, host platform, expected order quantity and packaging requirements so the quotation can be matched to the project.
| Mounting interface / footprint | Confirm mounting configuration. |
|---|---|
| Mount / adapter included | Confirm in the model-specific quotation. |
| Included accessories | Confirm in the model-specific quotation. |
| Minimum order quantity | Confirm in the model-specific quotation. |
|---|---|
| Production lead time | Confirm in the model-specific quotation. |
| Branding / packaging options | Confirm in the model-specific quotation. |
Send us your quantity, mounting requirements and destination market. HERTDOT will help you confirm the product configuration and prepare a quotation for your next order.
