The HERTDOT HD2217EQF combines a 22 × 17 mm multi-coated glass window, 3 MOA red or green dot and ACRO footprint with an RMSc adapter plate. It uses a side-loading CR1632 battery rated for 20,000 hours at low illumination level, with motion activation and an optional solar panel.

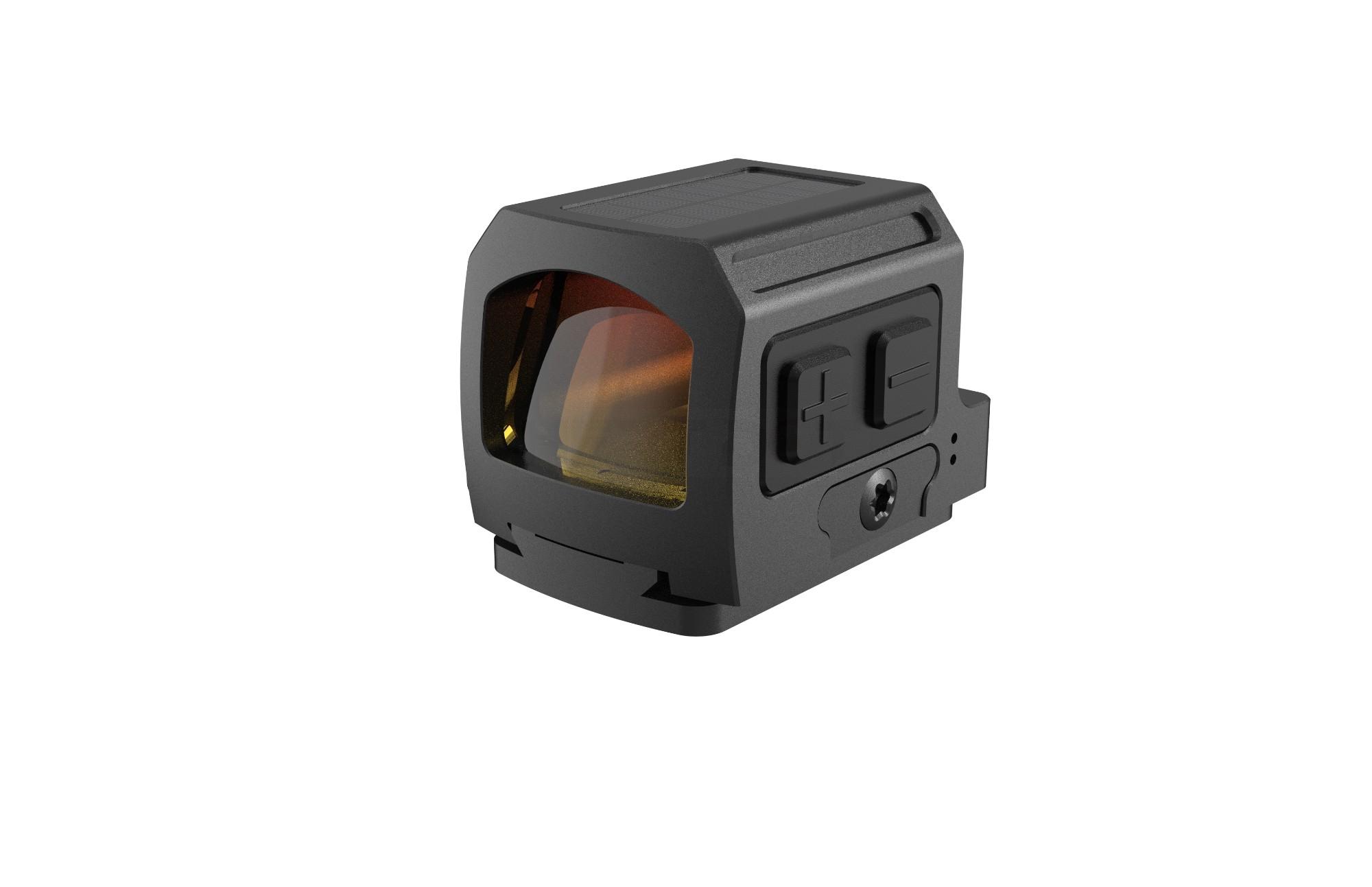

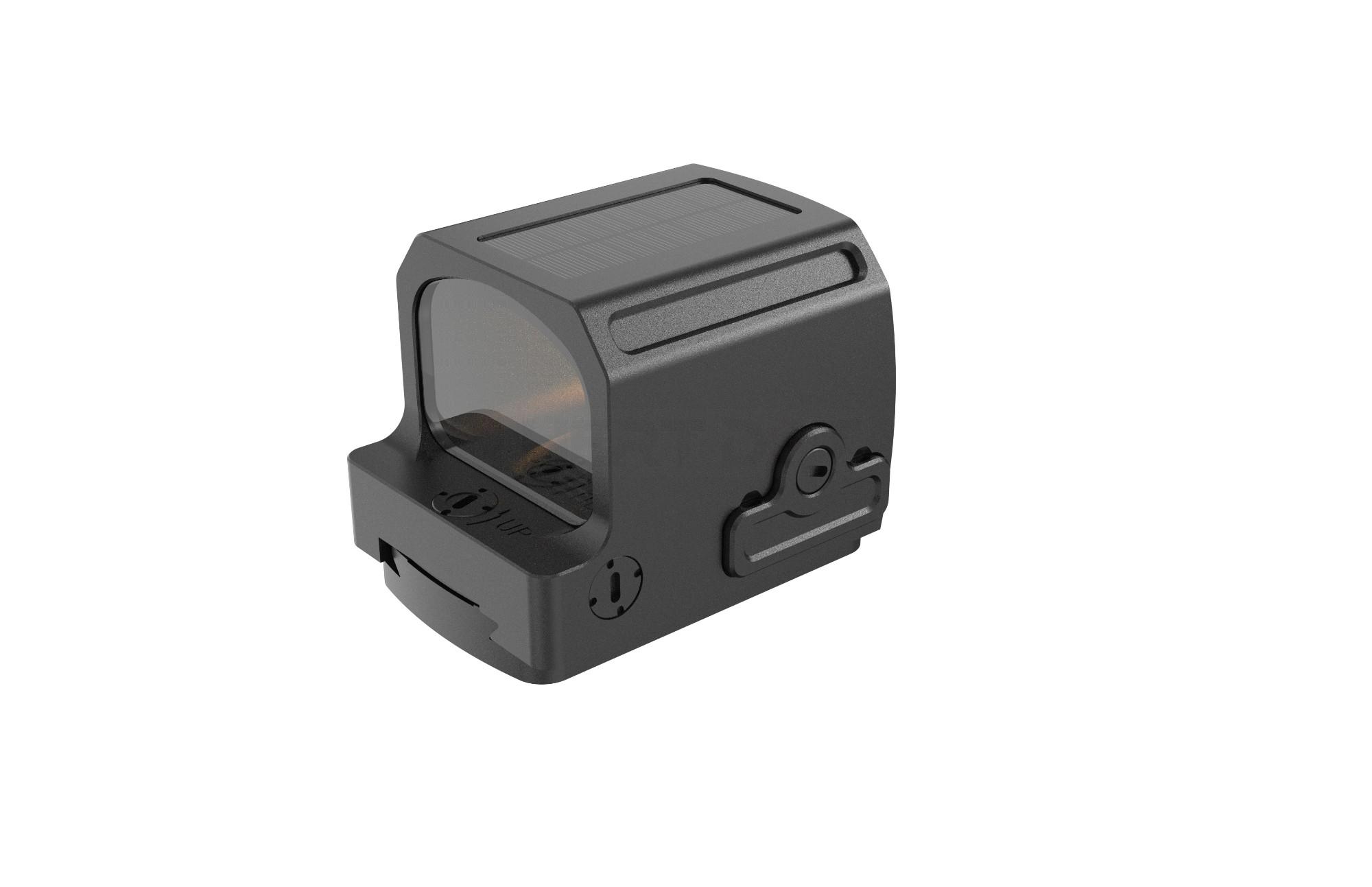

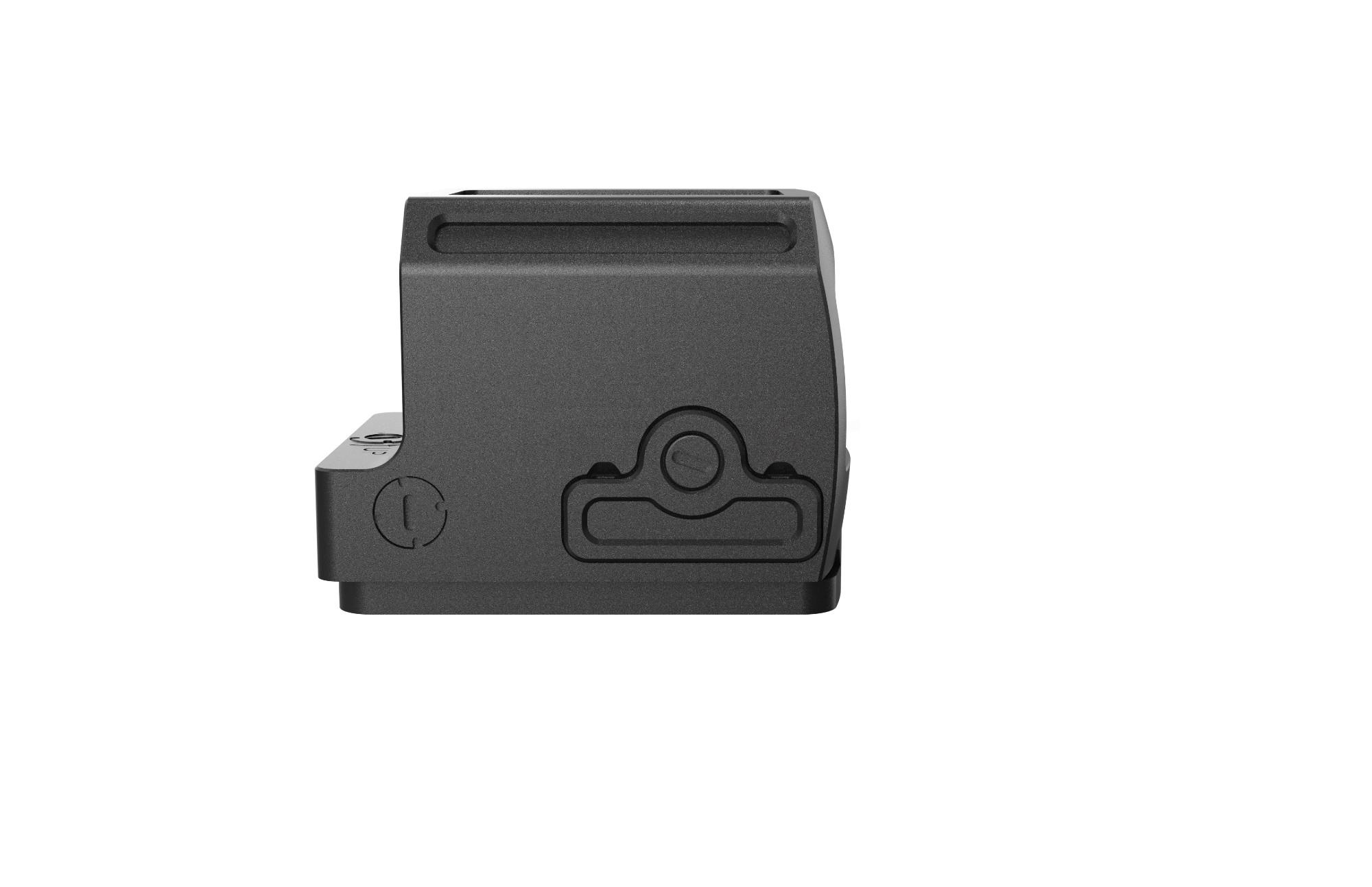

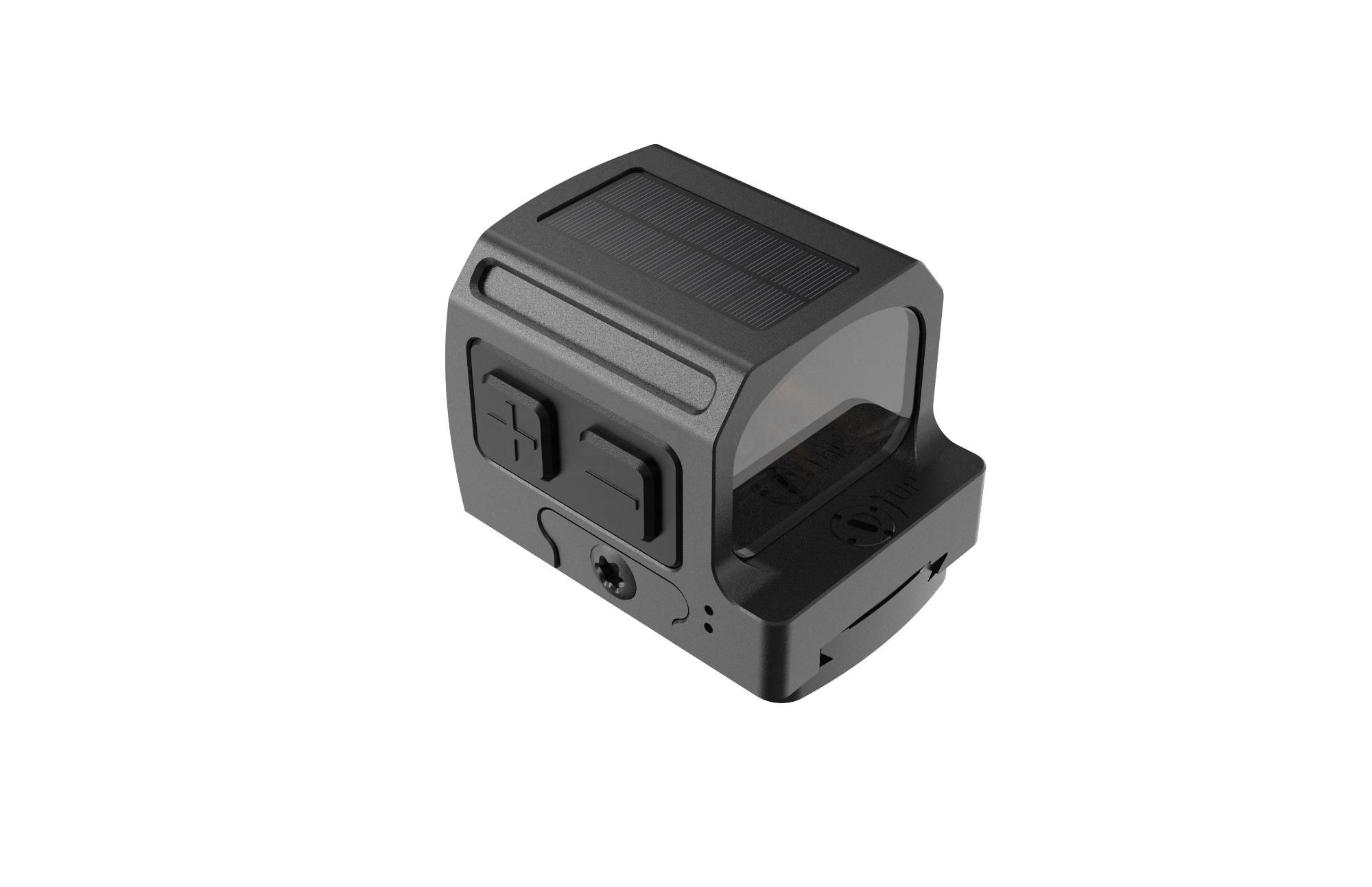

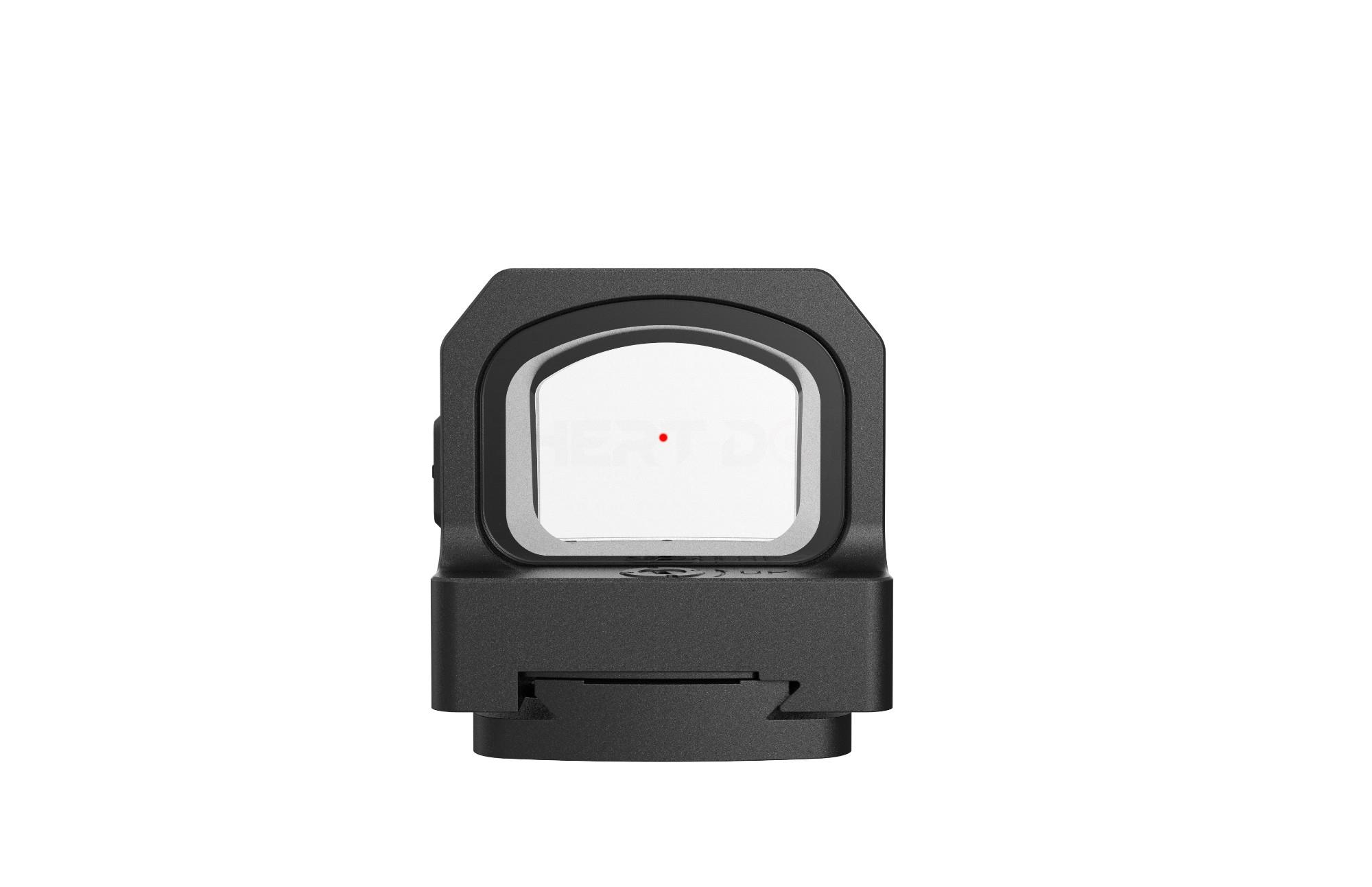

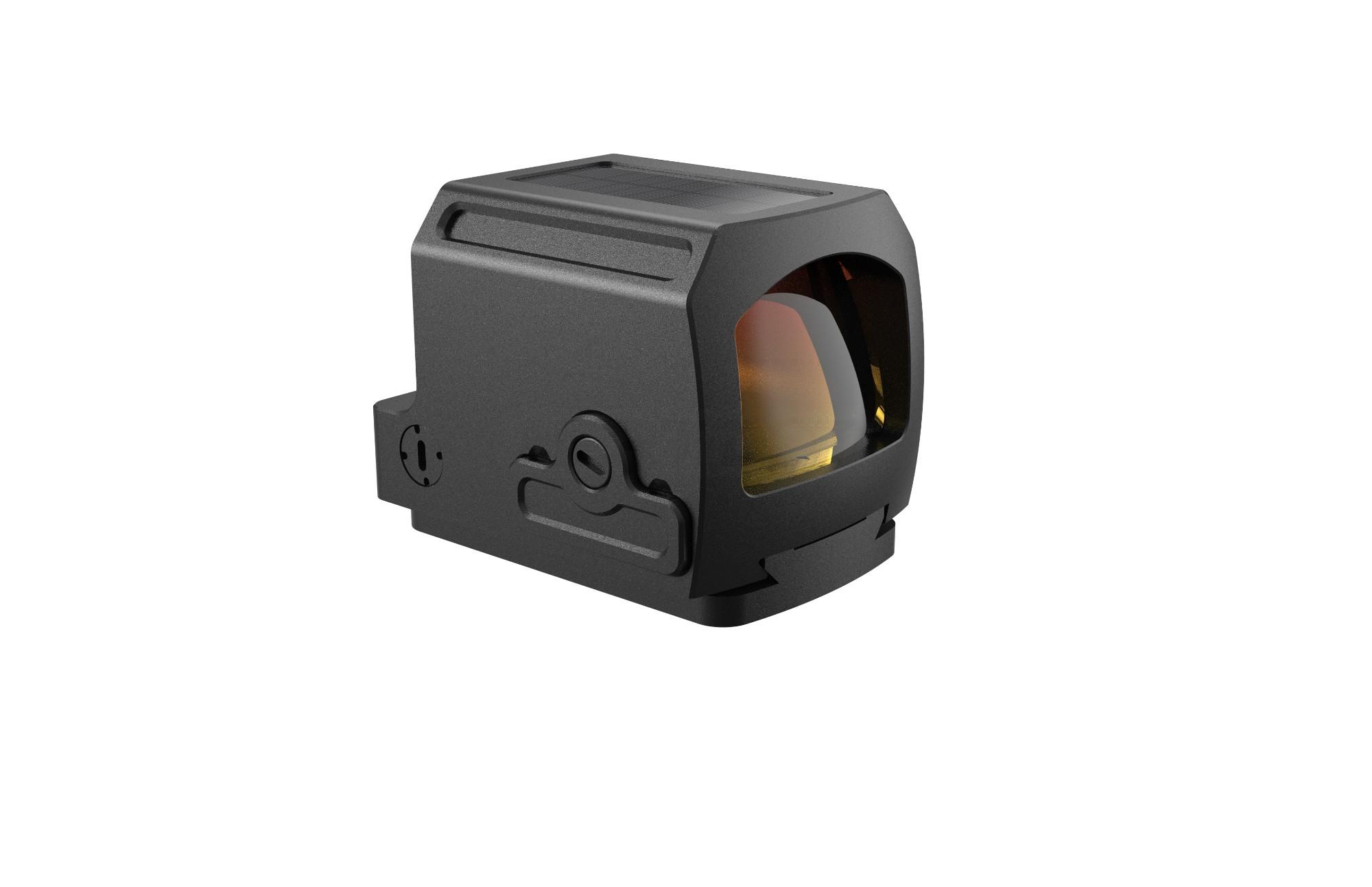

The HERTDOT HD2217EQF is a enclosed red dot sight with an optional solar panel for compact optic sourcing programs. Its supplied views show a red-dot aiming point, side brightness controls and a black protective housing built around a 22 × 17 mm window format.
The model format gives procurement teams a clear window-size reference when comparing compact red-dot platforms.
The solar panel is optional; specify the required solar configuration in the sourcing brief.
Clearly marked side controls provide direct access to illumination adjustment and remain visible in the supplied gallery.
ACRO footprint with an RMSc adapter plate Confirm the required interface and host-platform dimensions with the quotation request.
| Reticle Options |    |
|---|---|
| Model | HD2217EQF |
| Product type | Red/Green Dot Sight |
| Objective Lens Dimensions | 22 × 17 mm |
| Dot size | 3 MOA |
| Mounting interface / footprint | ACRO footprint; RMSc adapter plate |
| Total Elevation Range | 90 MOA (45 MOA each side) |
| Total Windage Range | 90 MOA (45 MOA each side) |
| Battery | CR1632, side-loading; positive side facing up |
| Battery Life | 20,000 hours at low illumination level |
| Illumination Settings | 8 daytime + 2 night-vision settings |
| Low Battery Alarm | Yes |
| Housing Material | CNC-machined 6061 aluminum |
| Housing Surface | Anodized |
| Housing Color | Matte black |
| Size (L × W × H) | 41.5 × 34.2 × 30.7 mm |
| Weight | 46.8 g |
| Waterproof | IPX7 — 1 m for 30 minutes |
| Shockproof | 3000 G |
| Operating Temperature | −20°C to +40°C (−4°F to +104°F) |
| Storage Temperature | −30°C to +50°C (−22°F to +122°F) |
| Auto-off / motion activation | Automatic power-off after 2 minutes without motion; powers on when motion is detected |
| Reticle color | Red or green |
| Illumination source | High-efficiency point-source LED emitter |
| Eye relief | Unlimited |
| Parallax | ≤2 MOA |
| Solar panel | Optional |
| Lens material / treatment | Multi-coated glass |
| Parallax setting | 25 yards |
Use HD2217EQF in a sourcing brief when the 22 × 17 mm format and its visible housing configuration match the intended product line. Include the target market, host platform, expected order quantity and packaging requirements so the quotation can be matched to the project.
| Mounting interface / footprint | ACRO footprint; RMSc adapter plate |
|---|---|
| Mount / adapter included | Confirm in the model-specific quotation. |
| Included accessories | Confirm in the model-specific quotation. |
| Minimum order quantity | Confirm in the model-specific quotation. |
|---|---|
| Production lead time | Confirm in the model-specific quotation. |
| Branding / packaging options | Confirm in the model-specific quotation. |
Send us your quantity, mounting requirements and destination market. HERTDOT will help you confirm the product configuration and prepare a quotation for your next order.
Request a Product Quotation
