RALD23NCP — A Compact Addition to Your Rifle Optics Range

Looking for a solar-equipped option in the same compact optics family? The HERTDOT RALD23NCP pairs 1× magnification with a 23 mm objective lens, a solar panel and side-mounted controls. A high mount with a 40.4 mm center height completes the configuration shown in the gallery. Share your target quantity and destination market, and we will help you prepare a product quotation.

Practical Features Your Buyers Can Understand

23 mm lens. Solar panel. Side controls.

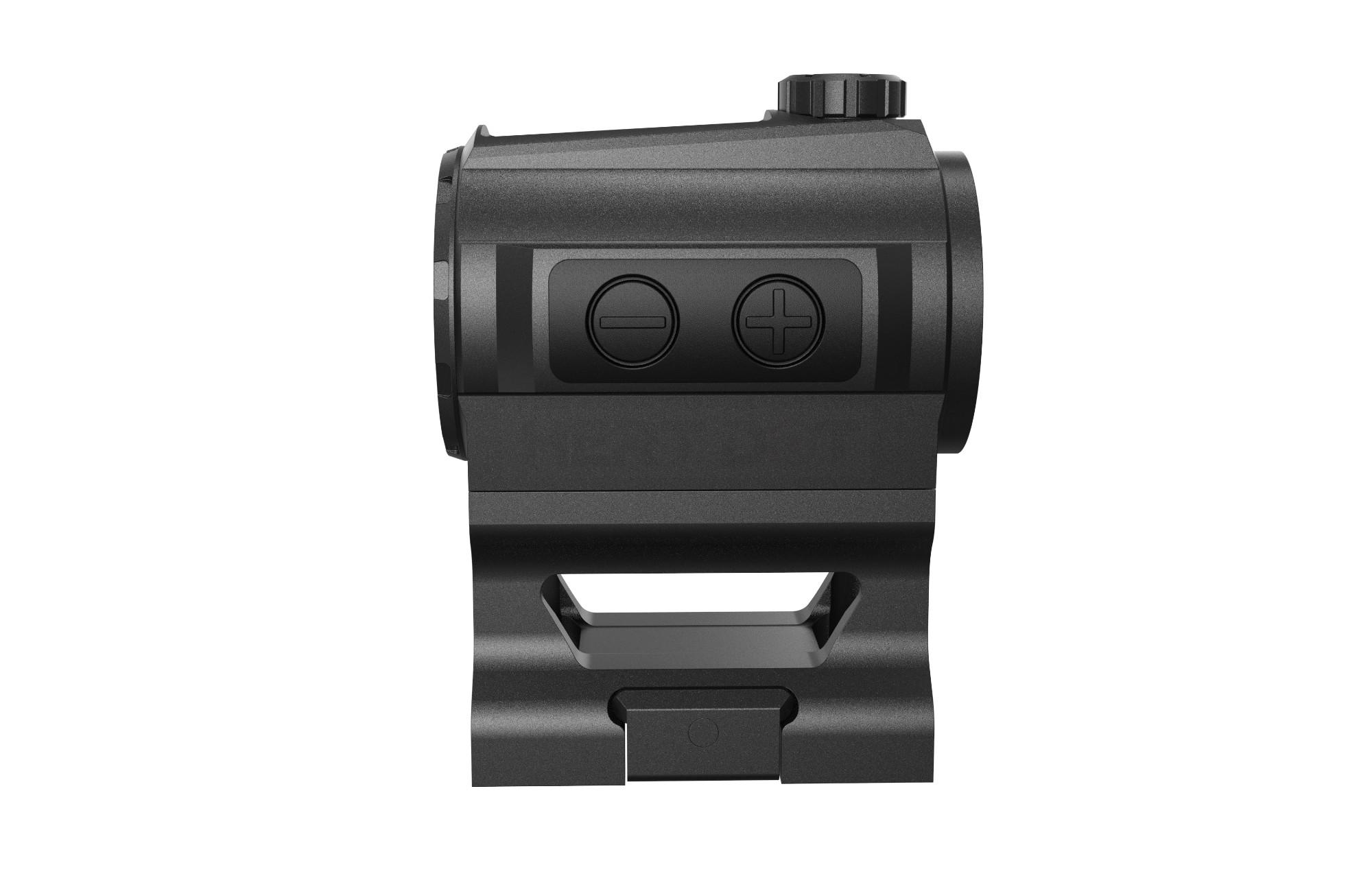

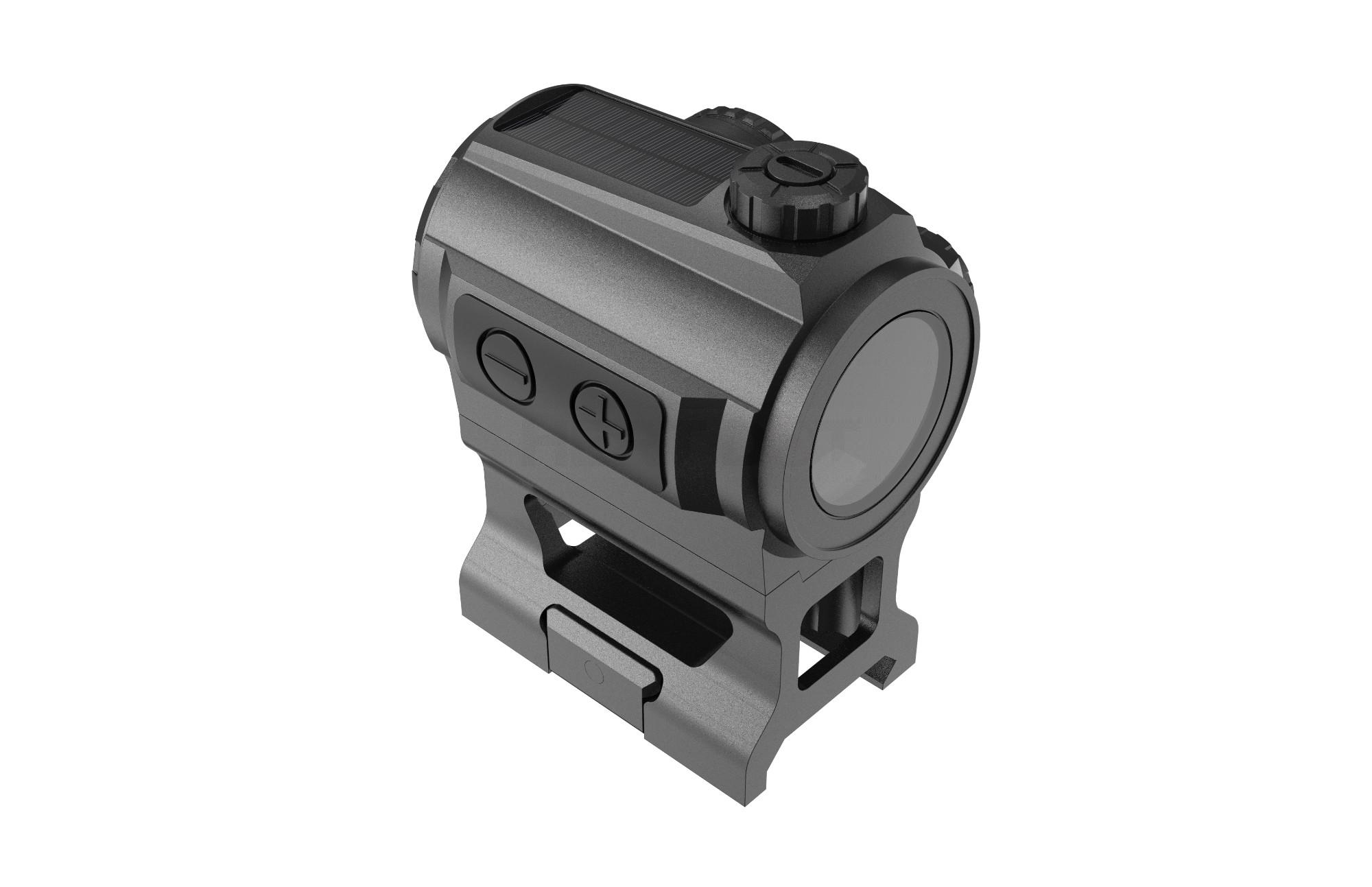

The RALD23NCP combines a 23 mm objective lens with a top-mounted solar panel and side-mounted plus/minus buttons. At 135 g, it offers a different lens and control configuration for buyers comparing the two models. Discuss the solar operating behavior and your required setup when requesting a quotation.

Side-load battery. Simple access.

The CR2032 battery loads from the side. Specified battery life is 100,000+ hours at a low illumination level, with a low-power alarm to indicate when attention is needed. Keep the brightness condition alongside the battery-life figure when comparing specifications.

Motion activation for everyday handling.

The optic powers off automatically after 2 minutes without motion and powers on when motion is detected. This gives your catalog a clear, easy-to-explain power-management feature.

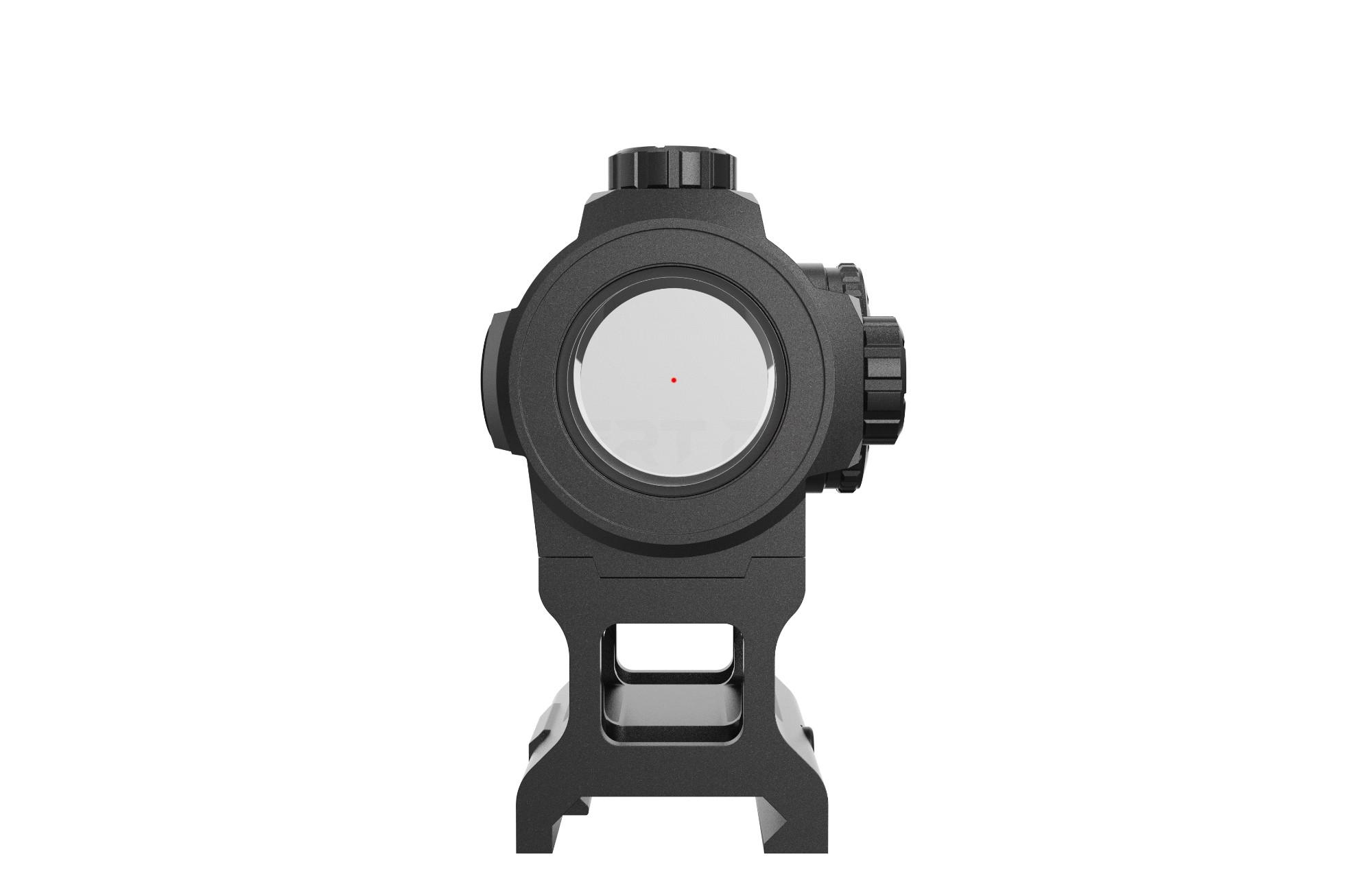

Circle-dot reticle.

The circle-dot reticle combines a surrounding circle with a 3 MOA center dot. With 8 daytime settings and 2 night-vision settings, you can also select an illumination level for different conditions. Contact HERTDOT to confirm your required reticle and color configuration for the order.

A clear specification for product comparison.

A CNC-machined 6061 aluminum housing, multi-coated glass and 1× magnification define the construction and optical format. The supplied ratings are IPX7 waterproofing at 1 meter for 30 minutes and 1500 G shock resistance. Review these values alongside the size and weight when selecting products for your assortment.

Technical Specifications

Model	RALD23NCP
Magnification	1×
Objective lens diameter	23 mm
Size (L × W × H)	52 × 42.7 × 69 mm (with high mount)
Weight	135 g
Illumination source	High-efficiency LED
Solar panel	Yes
Lens material / treatment	Multi-coated glass
Reticle Options
Motion activation	Automatic power-off after 2 minutes without motion; powers on when motion is detected
Eye relief	Unlimited
Click value	1 MOA
Parallax	≤2 MOA
Parallax setting	100 yards
Center height	40.4 mm
Total elevation adjustment range	90 MOA (±45 MOA)
Total windage adjustment range	90 MOA (±45 MOA)
Battery	CR2032 — side load
Battery life	100,000+ hours at low illumination level
Illumination settings	8 daytime + 2 night-vision settings
Low-power alarm	Yes
Housing material	CNC-machined 6061 aluminum
Waterproof rating	IPX7 (1 meter for 30 minutes)
Shock resistance	1500 G
Operating temperature	−20°C to +40°C (−4°F to +104°F)
Storage temperature	−30°C to +50°C (−22°F to +122°F)
Mount type	High mount

For Distributors, Importers & Optics Retailers

Bring RALD23NCP into your selection with a 23 mm objective lens, motion activation and side-load CR2032 battery. Share your required reticle, mounting setup, quantity and destination market so we can address the details that matter to your purchasing team.

Planning a sample evaluation or a branded product offering? Include your sample, logo, packaging and documentation requirements in your inquiry. We will confirm available options, minimum order quantity, lead time and commercial terms for your request.
