The HERTDOT HD2420CQF offers a 24 × 20 mm multi-coated glass window, 3 MOA red or green dot and ACRO footprint with an RMR adapter plate. Its side-loading CR2032 battery is rated for 30,000 hours at low illumination level. Motion activation and an optional solar panel support configurable sourcing programs.

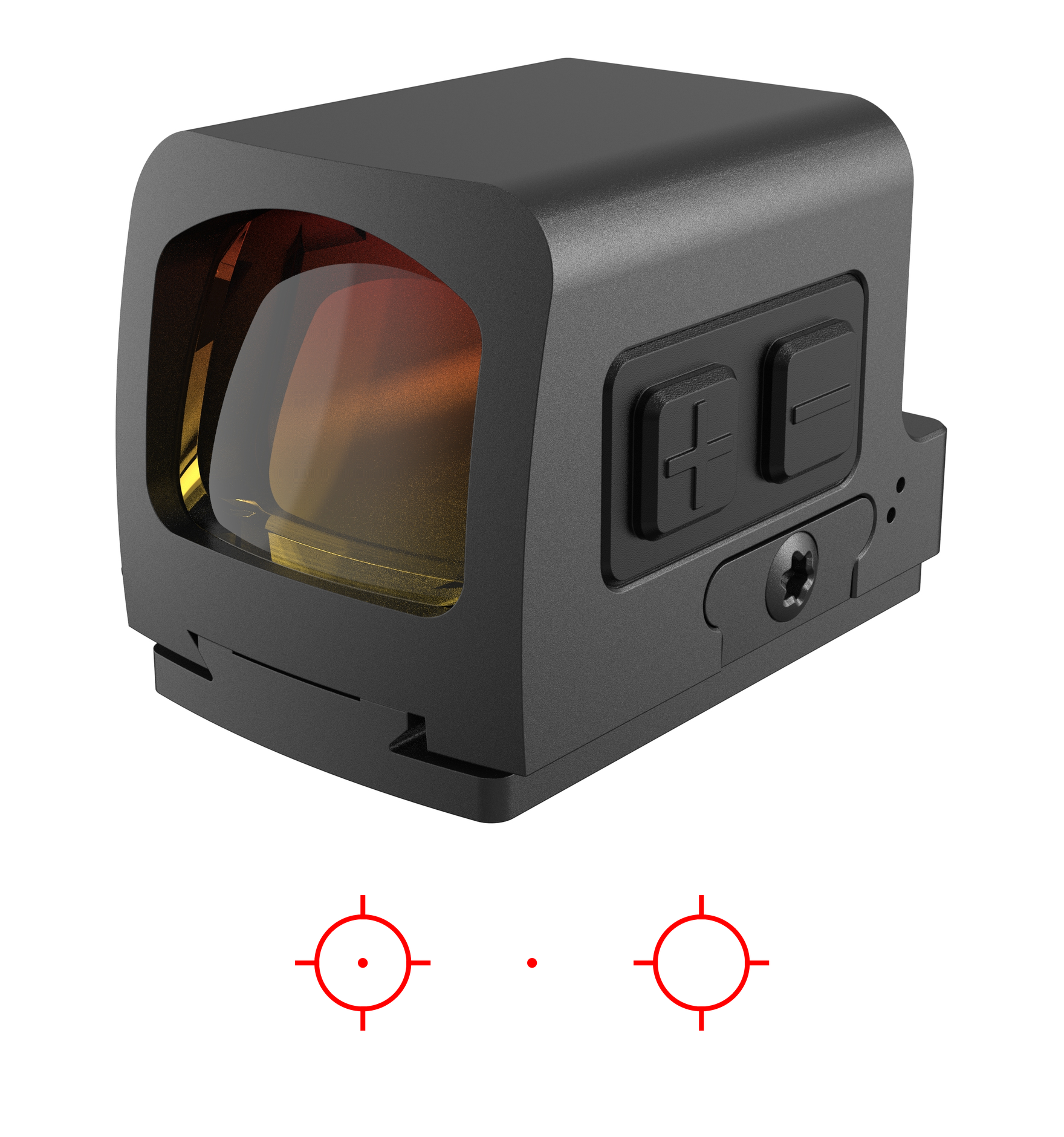

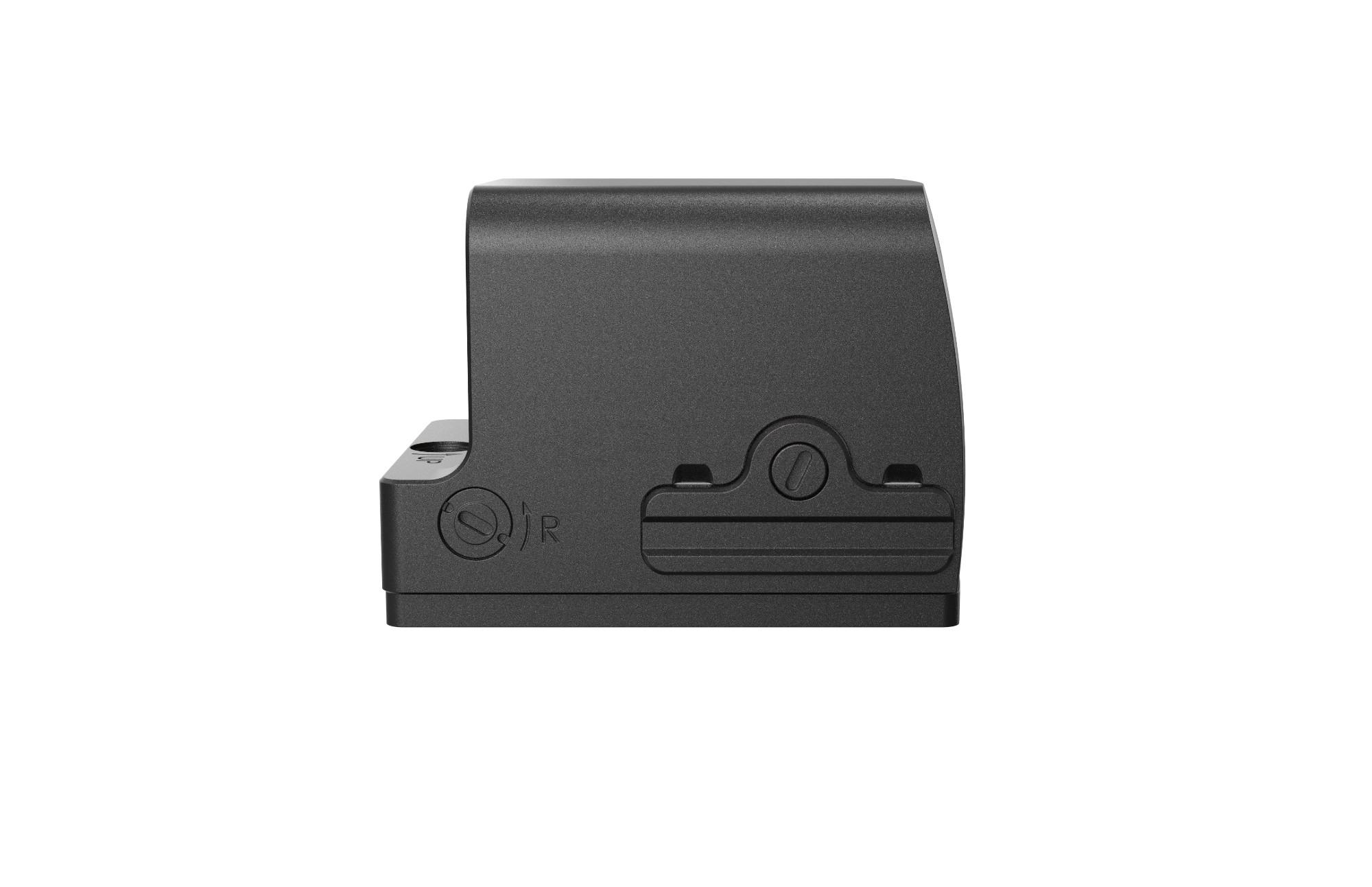

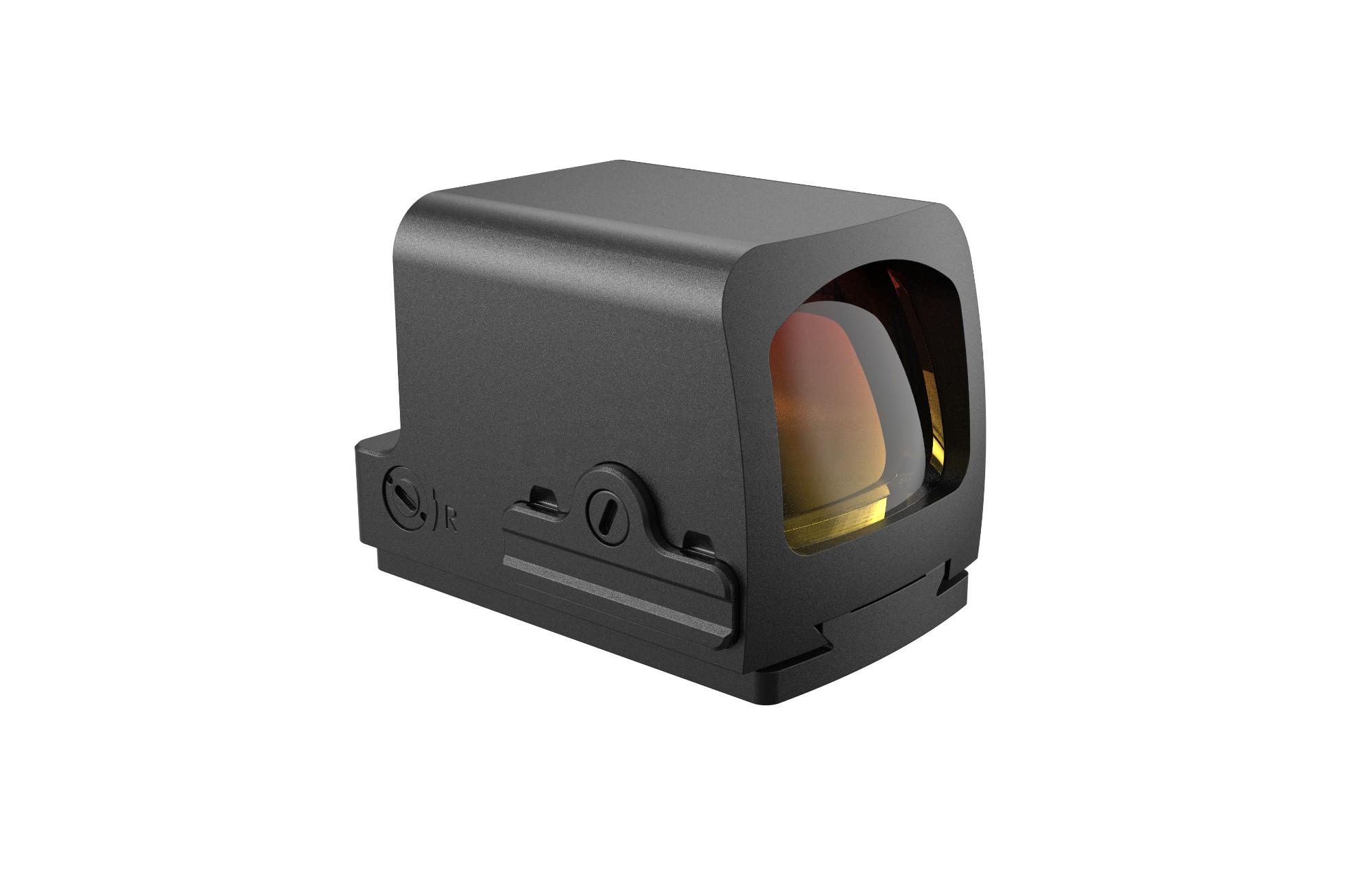

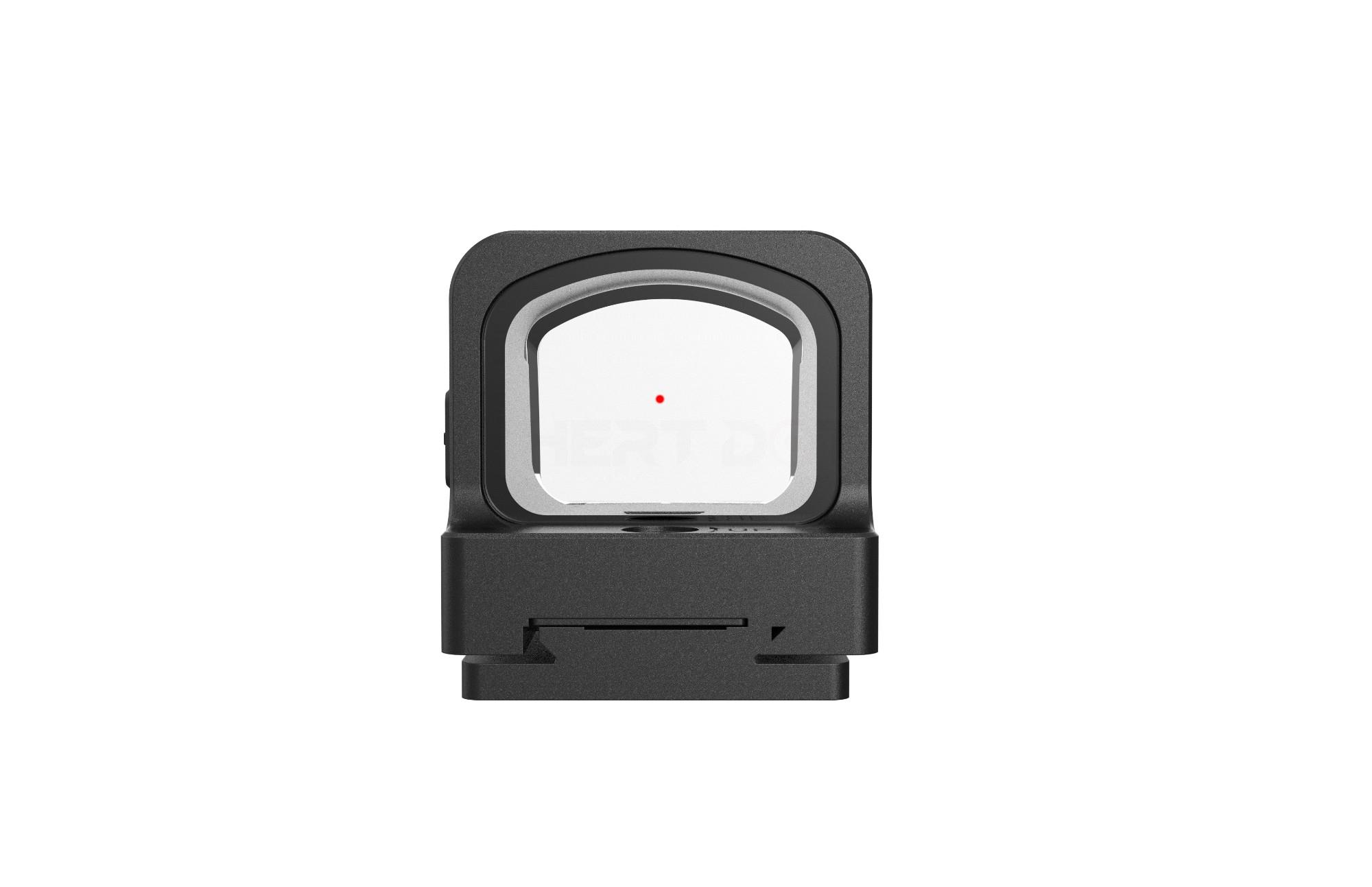

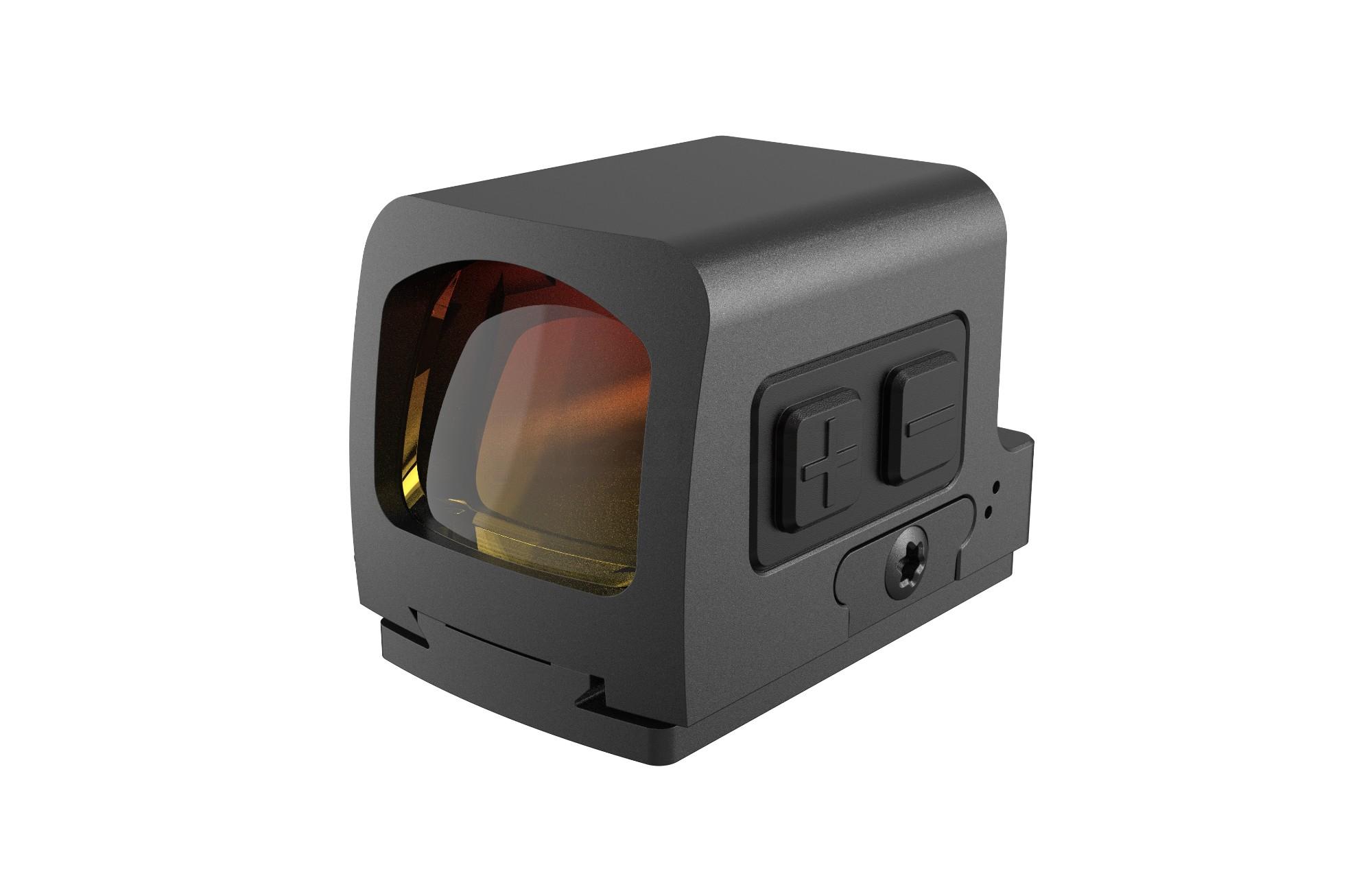

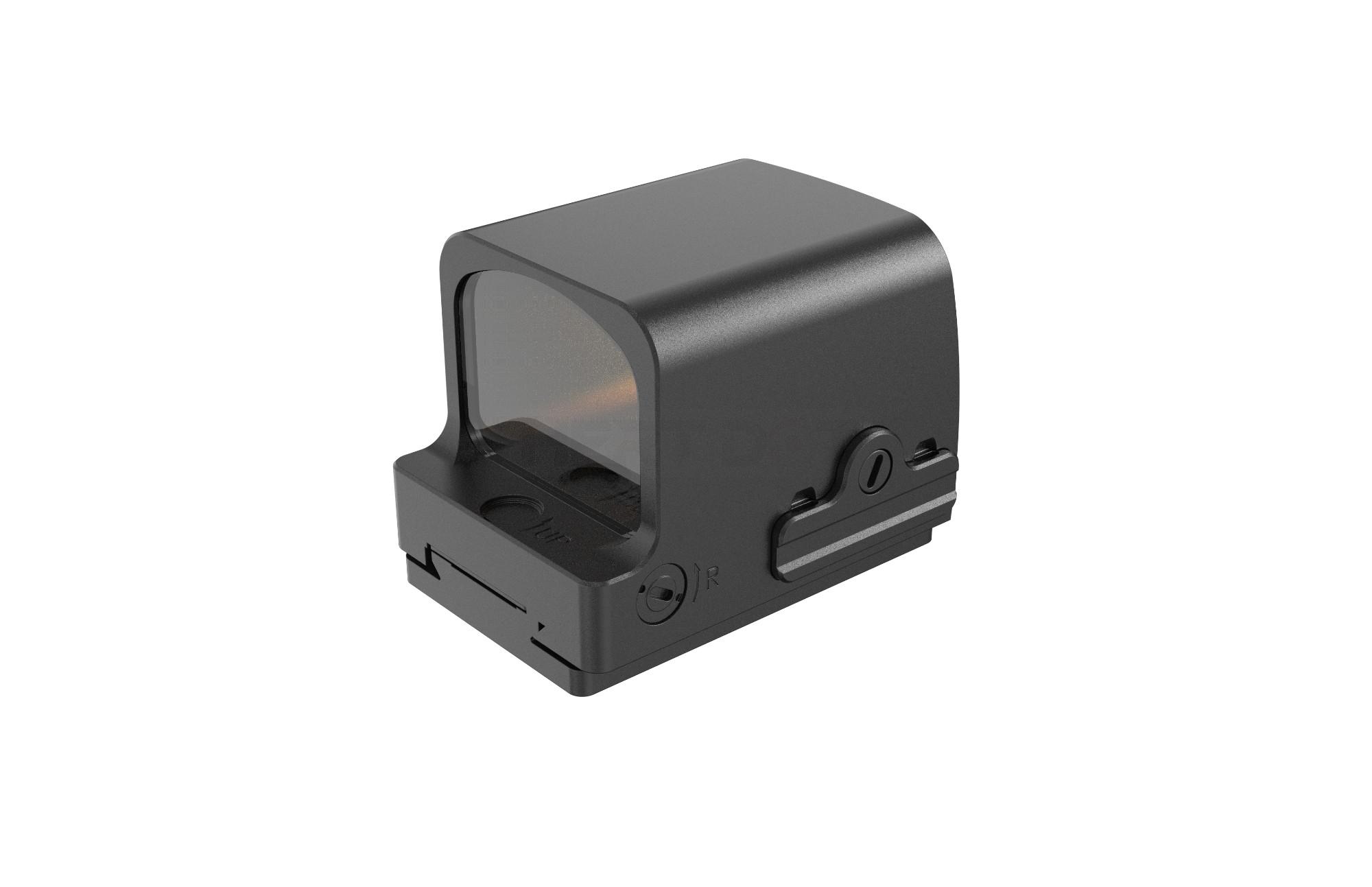

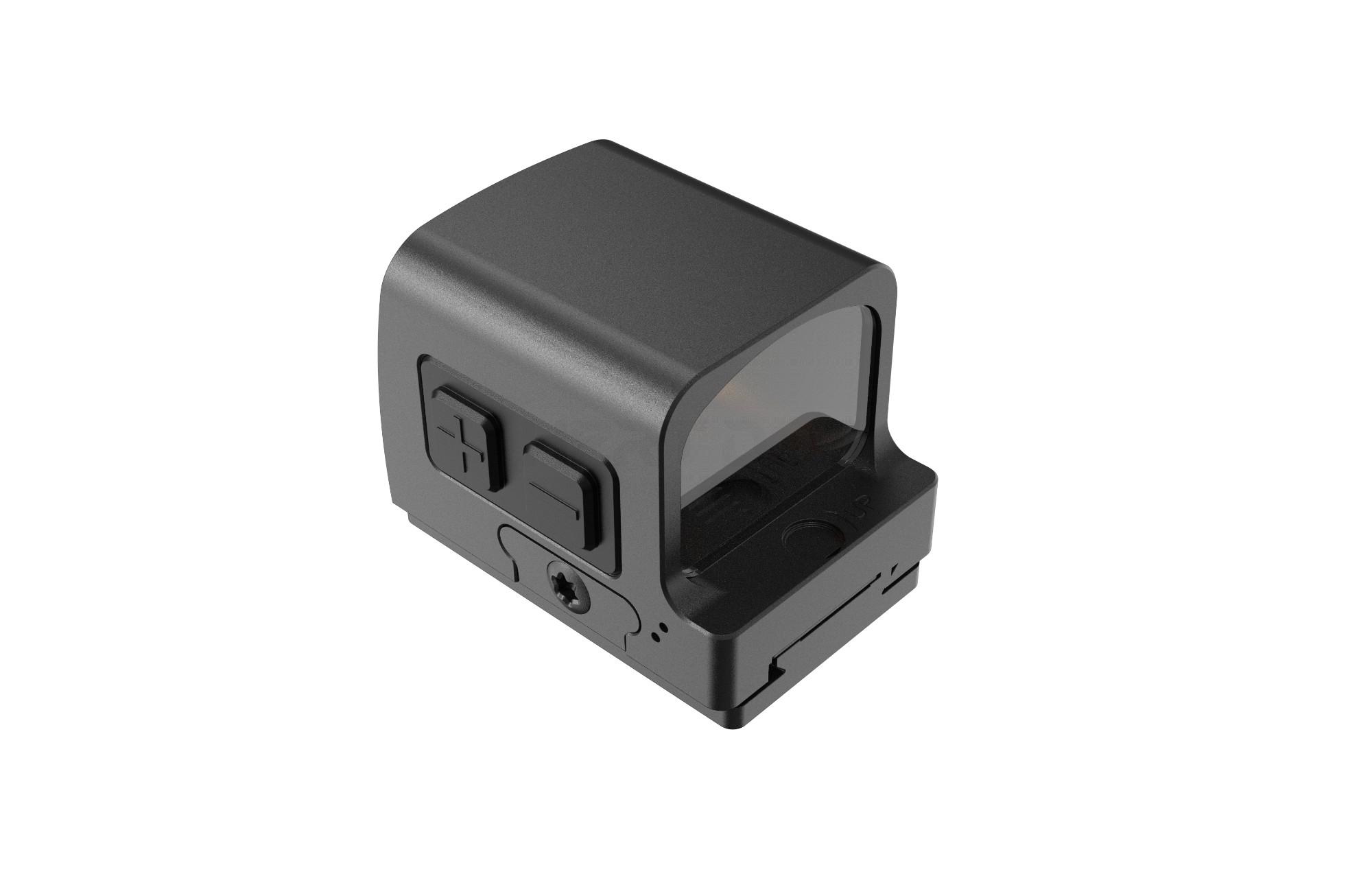

The HERTDOT HD2420CQF is a compact enclosed red dot sight for buyers comparing protected-window formats. Its supplied views show a red-dot aiming point, side brightness controls and a black protective housing built around a 24 × 20 mm window format.
The model format gives procurement teams a clear window-size reference when comparing compact red-dot platforms.
A compact enclosed profile shields the optical window on the top and both sides while keeping the sight picture open.

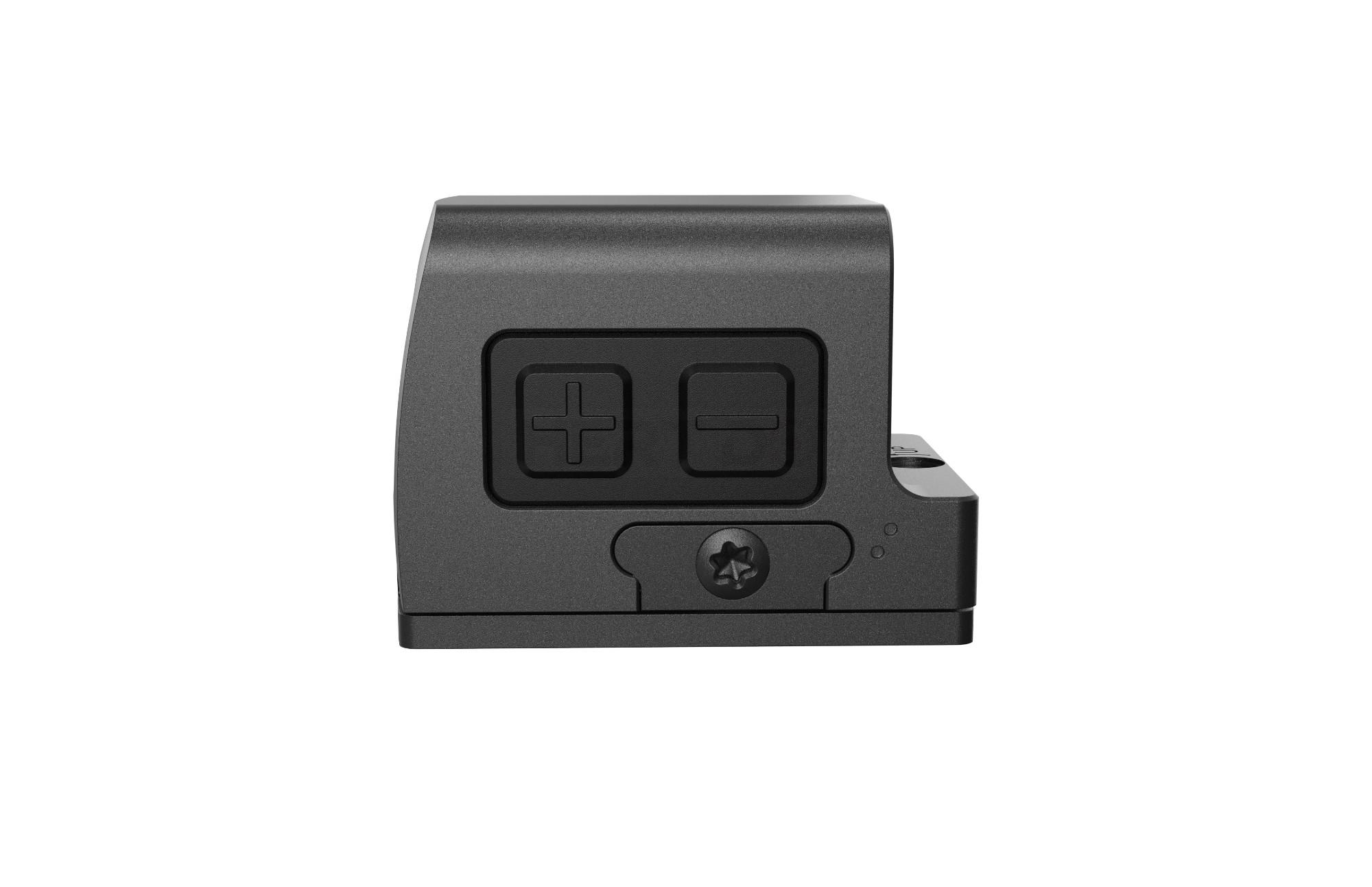

Clearly marked side controls provide direct access to illumination adjustment and remain visible in the supplied gallery.
ACRO footprint with an RMR adapter plate Confirm the required interface and host-platform dimensions with the quotation request.
| Reticle Options |    |
|---|---|
| Model | HD2420CQF |
| Product type | Red/Green Dot Sight |
| Objective Lens Dimensions | 24 × 20 mm |
| Dot size | 3 MOA |
| Mounting interface / footprint | ACRO footprint; RMR adapter plate |
| Total Elevation Range | 90 MOA (45 MOA each side) |
| Total Windage Range | 90 MOA (45 MOA each side) |
| Battery | CR2032, side-loading; positive side facing up |
| Battery Life | 30,000 hours at low illumination level |
| Illumination Settings | 8 daytime + 2 night-vision settings |
| Low Battery Alarm | Yes |
| Housing Material | CNC-machined 6061 aluminum |
| Housing Surface | Anodized |
| Housing Color | Matte black |
| Size (L × W × H) | 45.3 × 35 × 33 mm (with adapter plate) |
| Weight | 59.3 g |
| Shockproof | 3000 G |
| Operating Temperature | −20°C to +40°C (−4°F to +104°F) |
| Storage Temperature | −30°C to +50°C (−22°F to +122°F) |
| Auto-off / motion activation | Automatic power-off after 2 minutes without motion; powers on when motion is detected |
| Reticle color | Red or green |
| Illumination source | High-efficiency point-source LED emitter |
| Eye relief | Unlimited |
| Parallax | ≤2 MOA |
| Solar panel | Optional |
| Lens material / treatment | Multi-coated glass |
| Parallax setting | 100 yards |
| Waterproof test condition | 1 m for 30 minutes |
Use HD2420CQF in a sourcing brief when the 24 × 20 mm format and its visible housing configuration match the intended product line. Include the target market, host platform, expected order quantity and packaging requirements so the quotation can be matched to the project.
| Mounting interface / footprint | ACRO footprint; RMR adapter plate |
|---|---|
| Mount / adapter included | Confirm in the model-specific quotation. |
| Included accessories | Confirm in the model-specific quotation. |
| Minimum order quantity | Confirm in the model-specific quotation. |
|---|---|
| Production lead time | Confirm in the model-specific quotation. |
| Branding / packaging options | Confirm in the model-specific quotation. |
Send us your quantity, mounting requirements and destination market. HERTDOT will help you confirm the product configuration and prepare a quotation for your next order.
Request a Product Quotation
